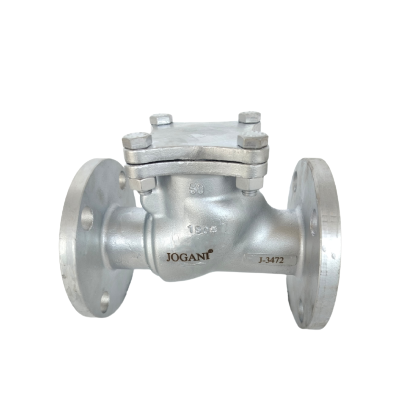

SWING CHECK VALVE

We, “JOGANI” are a leading manufacturer and Exporters of SWING CHECK VALVE. A basic Swing Check valve consists of a valve body, a bonnet, and a disk that is connected to a hinge. this valve are automatic valves that open with forward flow and close with reverse flow. The disc in a swing type Check valve is unguided as it fully opens or closes There are many disk and seat designs available, in order to meet the requirements of different applications. The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. Exact operation will vary depending on the type of Check valve mechanism.

We have a wide range of SWING CHECK VALVE in CI, CS, SS and other metals on request. “JOGANI” SWING CHECK VALVE mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.

"JOGANI" SWING CHECK VALVE design is developed with following and using international Standard for having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	BOLTED BONNET
MFG. STANDARD	BS 1868 / API 6D / API 594
TESTING STANDARD	API 598 / API 6D
FACE TO FACE DIMENSIONS	ASME B 16.10
FLANGE STANDARD	ASME B 16.5
BUTT WELD END STANDARD	ASME B 16.25
PRESSURE & TERPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300#, 600#, 900#, 1500# PN10, PN 16, PN 25, PN 40
VALVE SIZE	1/2” To 40” (15 mm TO 1000 mm)
END CONNECTIONS	FLANGED / BUTT WELD
FLANGE DRILLING	150#, 300#, 600#, 900#, 1500# PN10, PN 16, PN 25, PN 40 BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 217 GR. WC6 / WC9 / CA 15 ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M / CD4MCu ASTM A 352 GR. LCB **Also Other Special Alloy available on request.
