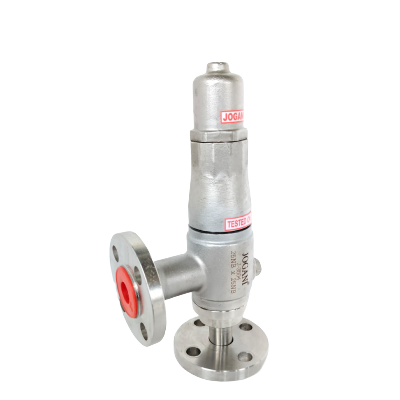

THERMAL SAFETY VALVE

We, “JOGANI” are leading manufacturer and Exporters of THERMAL SAFETY VALVE.  The primary purpose of Thermal Safety Valve is protection of life and property by venting fluid from an over pressurized vessel. Thermal safety relief valves can be used in vapor, gas, liquid or steam applications. On exceeding set pressure, the valve opens to discharge the excess built up pressure. After relieving excess pressure, the valve automatically returns to the original position. Thermal Safety Valve is designed with API 520 / ASME Section Vlll – Division l to meet the requirements of API standards. In Thermal Safety Valve By replacing only the spring it is possible to change set pressure range.
“JOGANI” provides Various MOC like CS, SS 304 & SS 316 to meet all separate Process Requirements. Also we provided special metal on request. THERMAL SAFETY VALVE is available Pressure Rating 150# / 300# with Flanged and Screwed End connection.
“JOGANI” THERMAL SAFETY VALVE mainly used in process industries like Chemical, Power, Steel, Marine, Pharmaceuticals, Oil & Gas.
“JOGANI” THERMAL SAFETY VALVE design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.
We “JOGANI” follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE

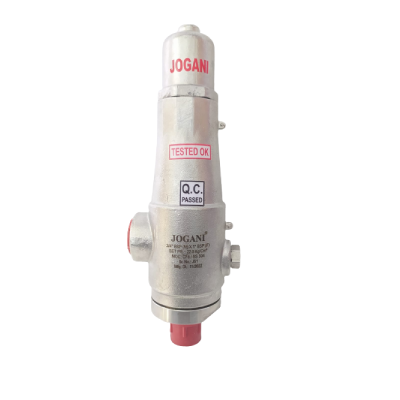

CLOSE CAP DESIGN

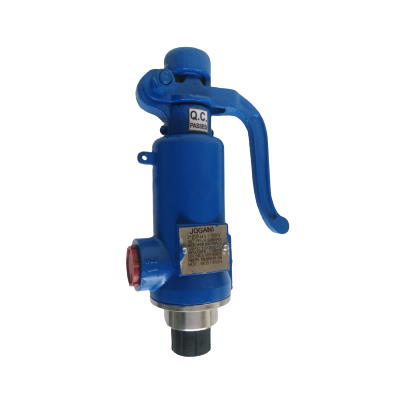

LEVER & CAP DESIGN
MFG. STANDARD
API 520, API 521
API 526, API 527
ASME Section VIII Div. I
EN ISO 4126 Part.1
TESTING STANDARD
 API 527
FLANGE STANDARD
ASME B 16.5
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#
STRAINER SIZE
½” X ½”” TO 1” X 1½”
(15 x 15 mm TO 25 x 40 mm)
END CONNECTIONS
FLANGED END,
SCREWED (BSP / NPT)
FLANGE DRILLING
150#, 300#,
BS 10 TABLE H
MATERIAL OF CONSTRUCTIONS
ASTM A 216 GR. WCB
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
**Also Other Special Alloy available on request.

FEATURES & BENEFITS:
·        Direct Spring Operated
·        Full Nozzle & Single Trim Design
·        Available In Metal Seat Or Soft Seat.
·        Stellited And Hardened Metal Sealing (For Longer Service Life)
·        Accurate Spring Designs To Achieve Blow Down Range
For Steam - 5-10% And For Liquid -20%
·        Low Maintenance
·        Simple & Reliable Design
