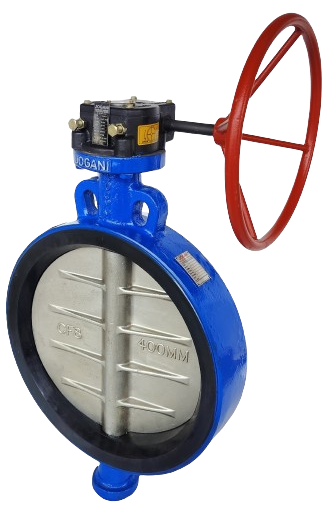

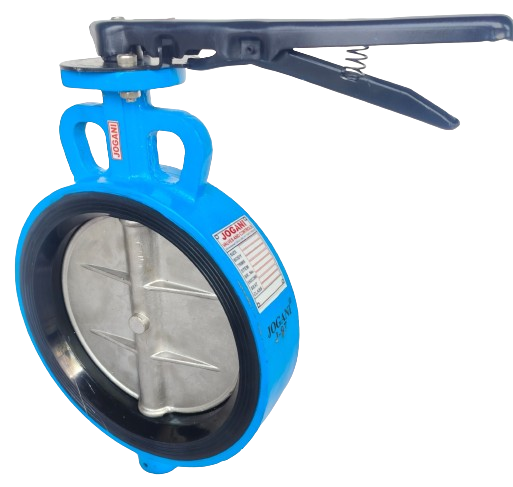

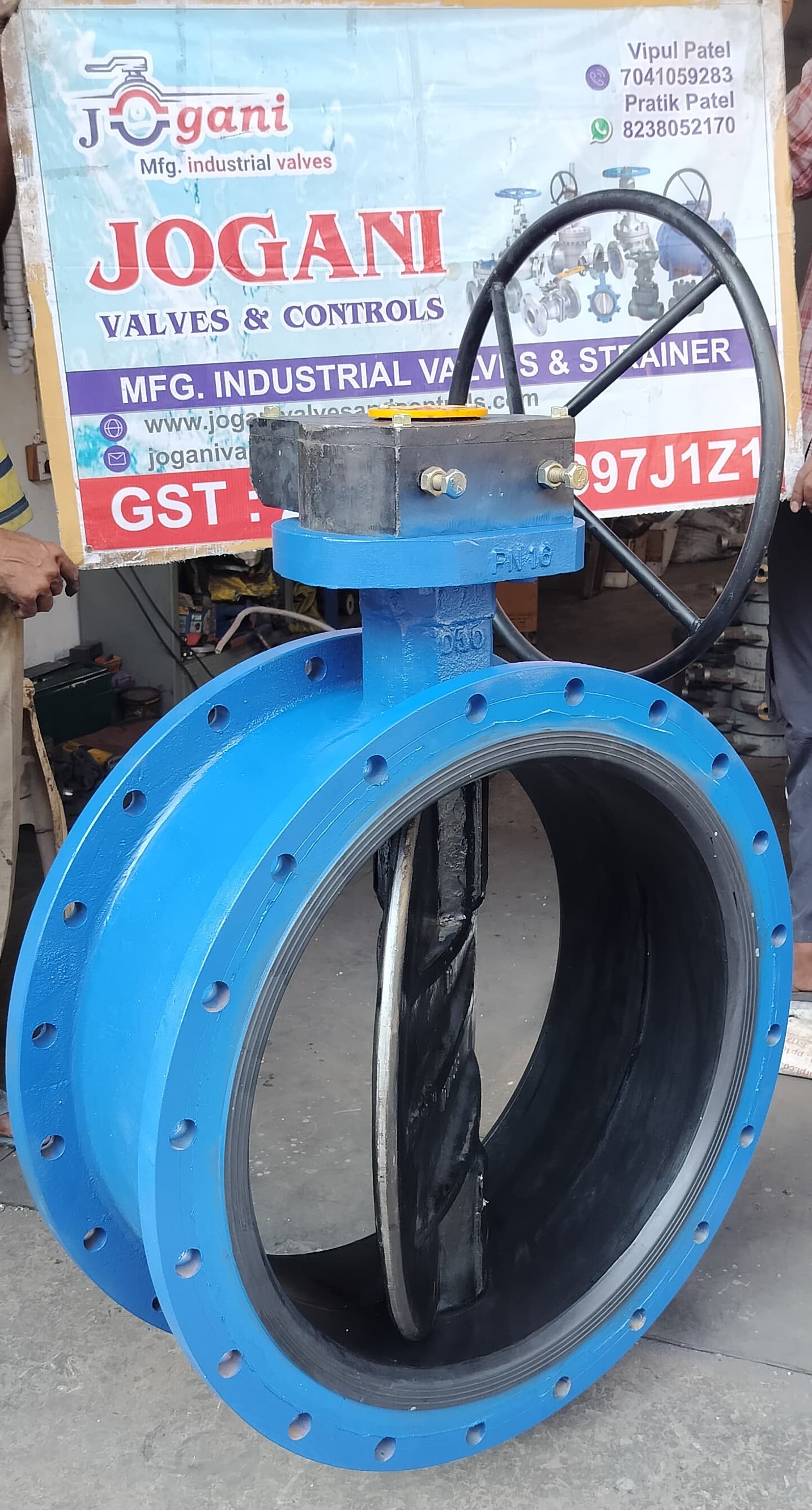

RUBBER LINED BUTTERFLY VALVE

CENTER DISC DESIGN
JOGANI” are a leading manufacturer and Exporters of BUTTERFLY VALVE. This valve is easy and fast to open. A 90° rotation of the handle provides a complete closure or opening of the valve. Butterfly valves are used for on-off or modulating services and are popular due to their light weight, small installation footprint, lower costs, quick operation and availability in very large sizes. These valves can be operated by Handle, Gear, Pneumatic and Electrical Actuators.

Butterfly valves can be used for a broad range of applications within water supply, wastewater treatment, fire protection and gas supply, in the chemical and oil industries, in fuel handling systems, power generation etc.

"JOGANI" BUTTERFLY VALVE design is developed with following and using international Standard For Having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.


TECHNICAL DETAIL

DESIGN TYPE

CENTER DISC DESIGN

RUBBER LINED

MFG. STANDARD

BS 5155, API 609 & AWWA 504

TESTING STANDARD

API 598/ BS 6755 Part-I

FACE TO FACE STANDARD

BS 5155, API 609 & AWWA 504 / ANSI B 16.10

PRESSURE & TEMPERATURE RATING

ASME B 16.34

PRESSURE CLASS

150#

PN10, PN 16

VALVE SIZE

1½” To 40”

(40 mm TO 1000 mm)

END CONNECTIONS

WAFER TYPE

FLANGE DRILLING



150#,

PN10, PN 16

BS 10 TABLE D / E / F / H

VALVE SEAT LEAKAGE

CLASS VI (Zero Leakage)

MATERIAL OF CONSTRUCTIONS



CI TO IS 210 GR. FG 200

ASTM A 216 GR. WCB

ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M

**Also Other Special Alloy available on request.

OPERATIONS

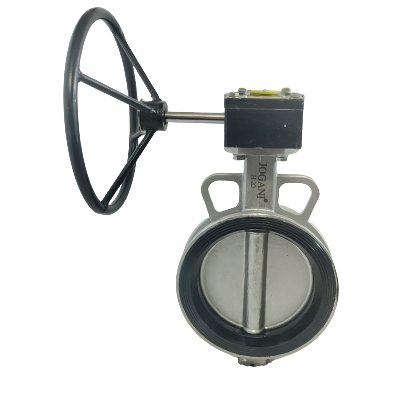

HAND WHEEL / GEAR

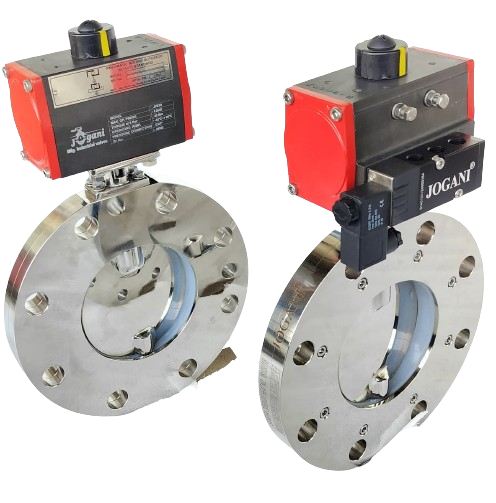

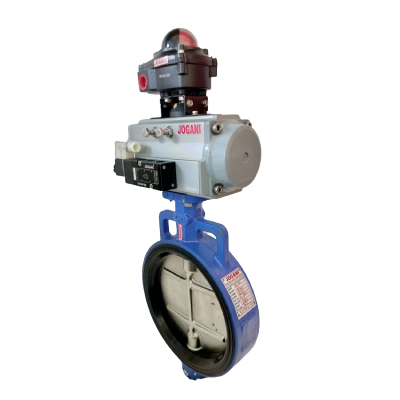

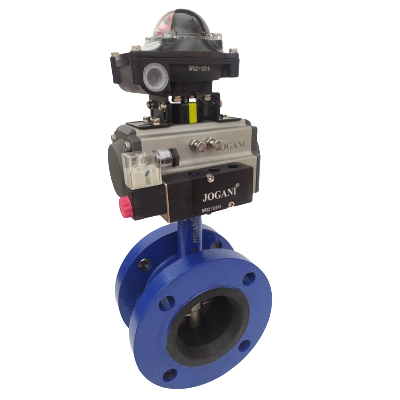

PNEUMATIC / ELECTRICAL ACTUATOR

**Also Other Special Operation available on request.

FACE TO FACE DIMENSIONS

INCH

MM

150#



1 1/2"

40

35.0

2"

50

44.0

2.5"

65

46.0

3"

80

46.0

4"

100

52.0

5"

125

56.0

6"

150

56.0

8"

200

60.0

10"

250

68.0

12"

300

78.0

14”

350

78.0

16”

400

102.0

18”

450

114.0

20”

500

127.0

24”

600

154.0

**For More & Higher Size,

Please Contact Us
