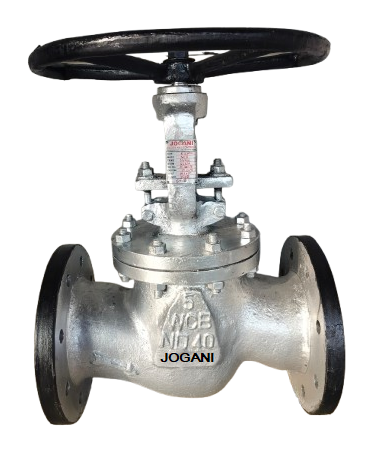

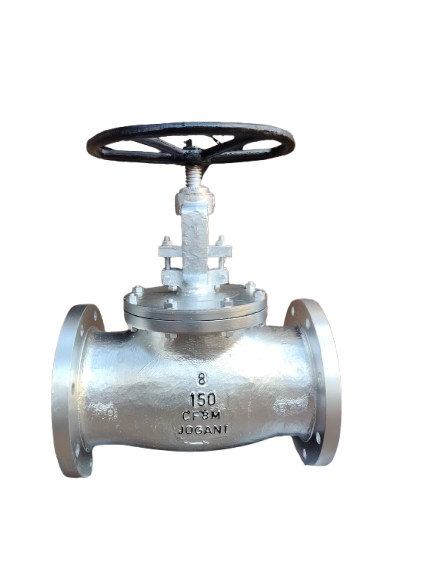

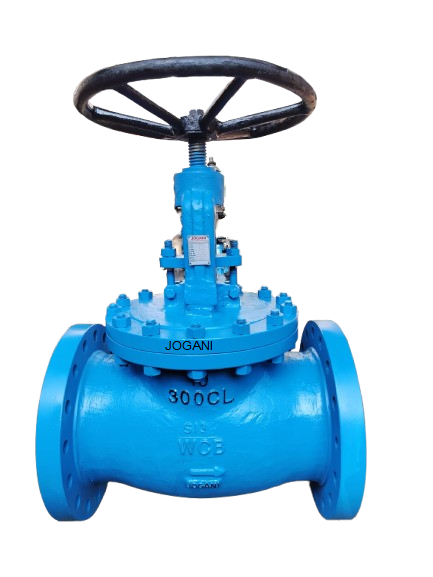

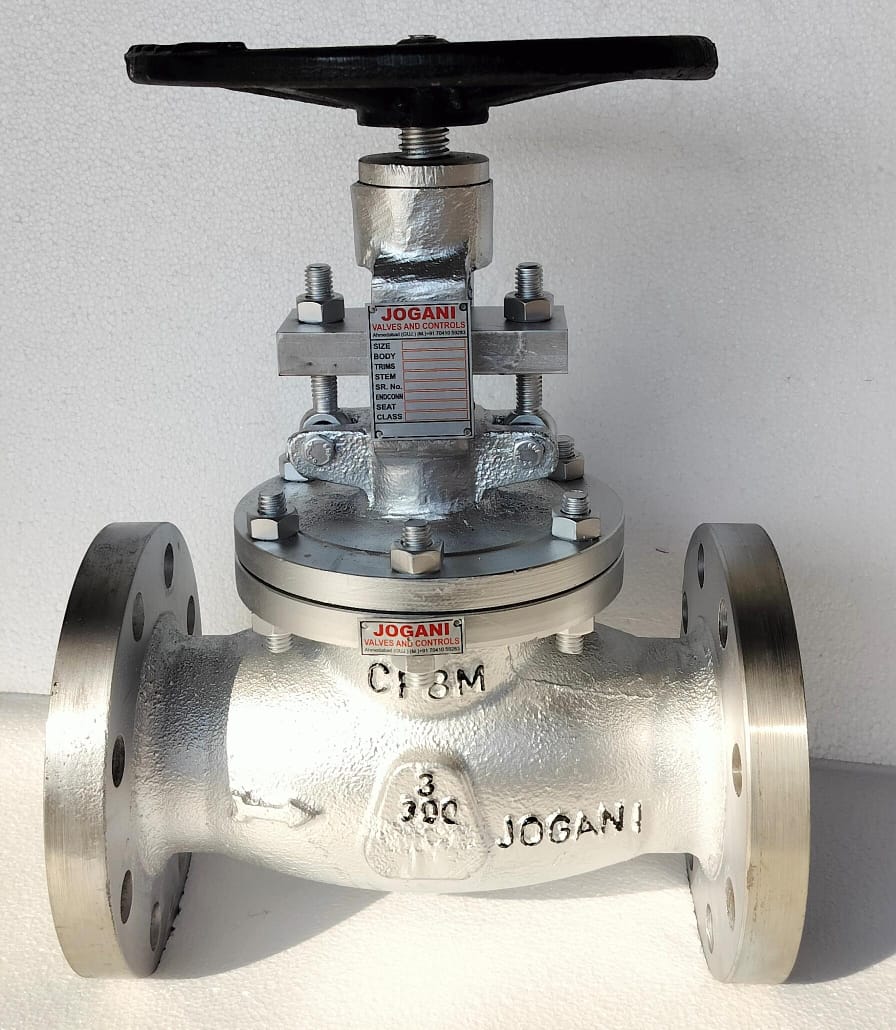

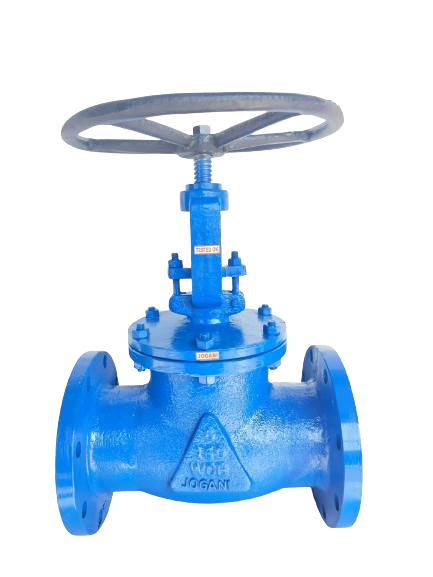

CAST GLOBE VALVE

We, “JOGANI” are a leading manufacturer and Exporters of GLOBE VALVE. We have a wide range of GLOBE VALVE in CI, CS, SS and other metals on request. “JOGANI” GLOBE VALVE mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.

"JOGANI" GLOBE VALVE design is developed with following and using international Standard For having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	BOLTED BONNET OS & Y TYPE RISING STEM PRESSURE SEAL BONNET
MFG. STANDARD	BS 1873 / API 623
TESTING STANDARD	API 598 / ISO 5208 / BS 6364
FACE TO FACE DIMENSIONS	ASME B 16.10
FLANGE STANDARD	ASME B 16.5
BUTT WELD END STANDARD	ASME B 16.25
PRESSURE & TEMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300#, 600#, 900#, 1500# PN10, PN 16, PN 25, PN 40
VALVE SIZE	1/2” To 40” (15 mm TO 900 mm)
END CONNECTIONS	FLANGED / BUTT WELD
FLANGE DRILLING	150#, 300#, 600#, 900#, 1500# PN10, PN 16, PN 25, PN 40 BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 217 GR. WC6 / WC9 / CA 15 ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M / CD4MCu ASTM A 352 GR. LCB **Also Other Special Alloy available on request.
OPERATIONS	HAND WHEEL / GEAR PNEUMATIC / ELECTRICAL ACTUATOR **Also Other Special Operation available on request.
