KNIFE EDGE GATE VALVE

We, “JOGANI” are leading manufacturer and Exporters of KINFE EDGE GATE VALVE. This valve available with Uni-Directional and Bi-Directional design. Knife Edge Gate Valve mostly used for on-off and controlling operation. In this valve design the edge of Plate helps the cut through thickly and slurry media easily. During closing operation of the Valve the Knife edged Plate cuts off the solid media and allows the plate to seal properly. Knife Edge Gate Valve is widely used for all types of applications and can be mounted vertically or horizontally in a piping system. Knife Edge Gate Valve main benefit are compact design, most cost effective, proper sealing, easy operation, full flow area for media, low weight, easy installation and maintenance.
“JOGANI” provides Various MOC like CI, CS and SS to meet all separate Process Requirements. Also we provided special metal on request. Knife Edge Gate Valve are available Pressure Rating 150# / 300# / PN 10 / PN 16 with various end connection as Full Lugged, Semi Lugged, Wafer & Flanged End. We also provide Knife Edge Gate Valves as per customer’s required specification and design.
“JOGANI” Knife Edge Gate Valves mainly used in process industries like Cement, Pulp & Paper, Chemical, Power, Steel, Marine, Pharmaceuticals, Oil & Gas.
“JOGANI” Knife Edge Gate Valves design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.
We “JOGANI” follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
UNI-DIRECTIONAL
BI-DIRECTIONAL
MFG. STANDARD
MSS SP 81
TESTING STANDARD
MSS SP 81
FACE TO FACE STANDARD
MSS SP 81
FLANGE STANDARD
ASME B 16.5 / DIN
PRESSURE & TERMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
PN3 (45 PSI), PN6 (90 PSI) and PN10 (150 PSI)
STRAINER SIZE
2” To 36”
(50 mm TO 900mm)
END CONNECTIONS
WAFER END / FLANGED
SEMI-LUGGED
FULL-LUGGED
FLANGE DRILLING
ASME B16.5, 150# / BS-EN 1092 PN 10 / PN 16
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
**Also Other Special Alloy available on request.
TYPE OF SEAT
METAL TO METAL
SOFT SEAT (RUBBER / PTFE SEAT)
**Also Other Special Seat available on request.
OPERATIONS

HAND WHEEL / GEAR / CHAIN WHEEL

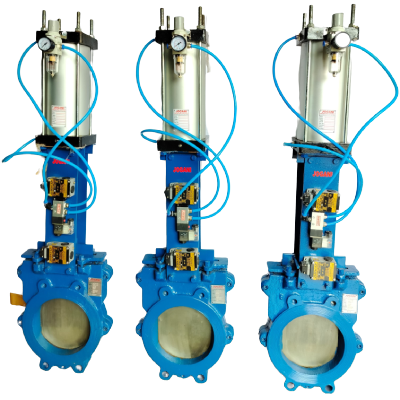

PNEUMATIC / ELECTRICAL ACTUATOR
**Also Other Special Operation available on request.
