CAST GATE VALVE

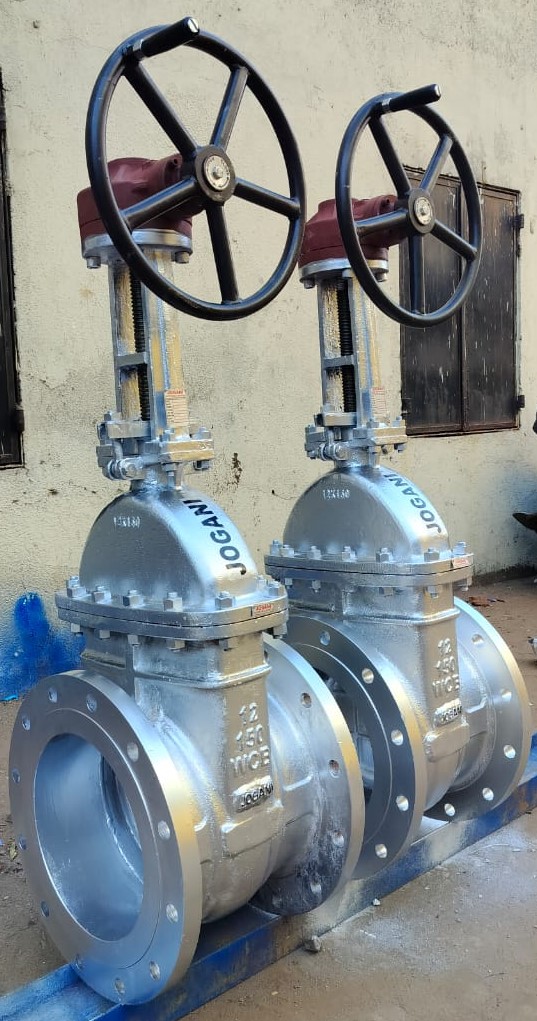

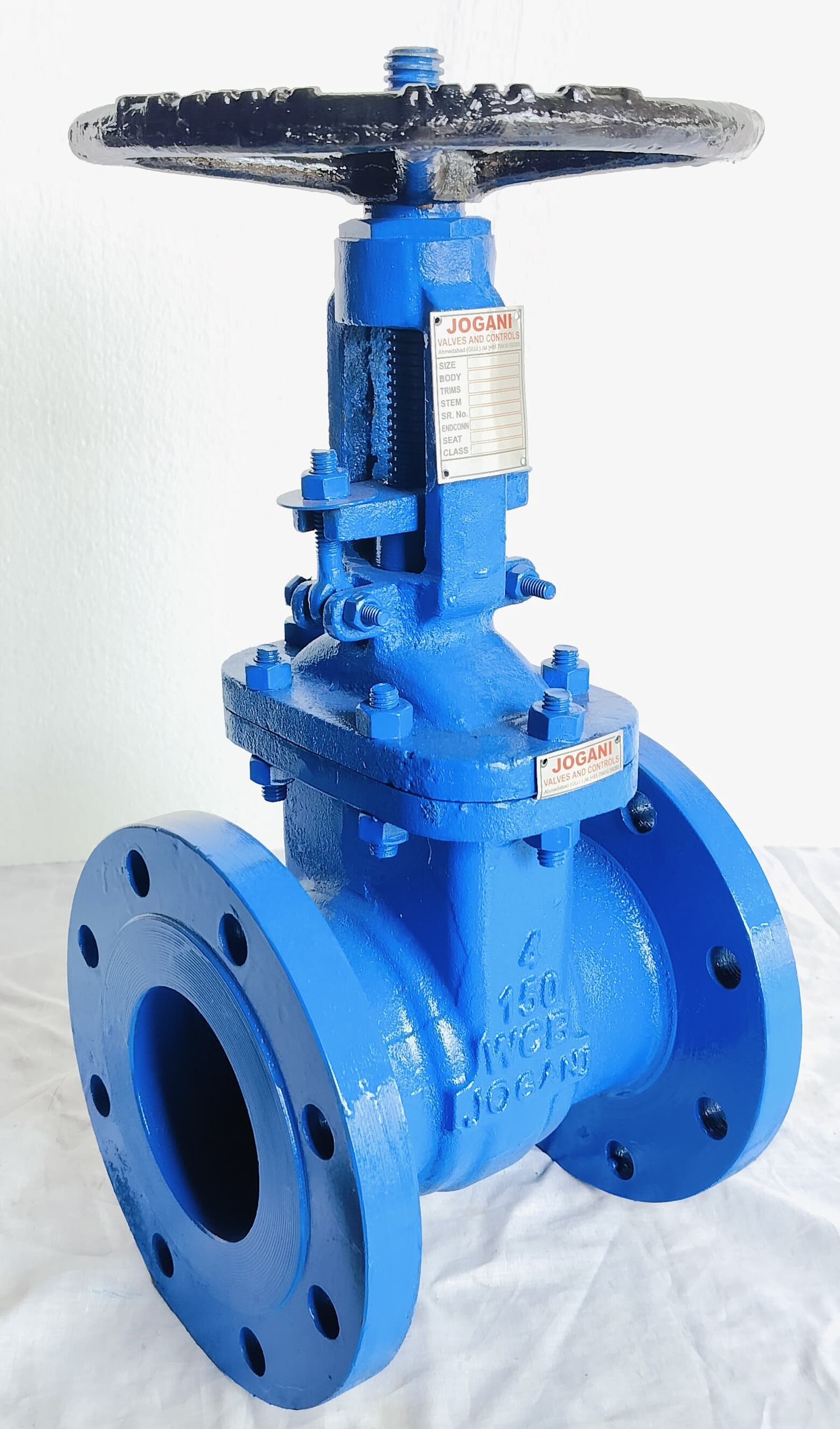

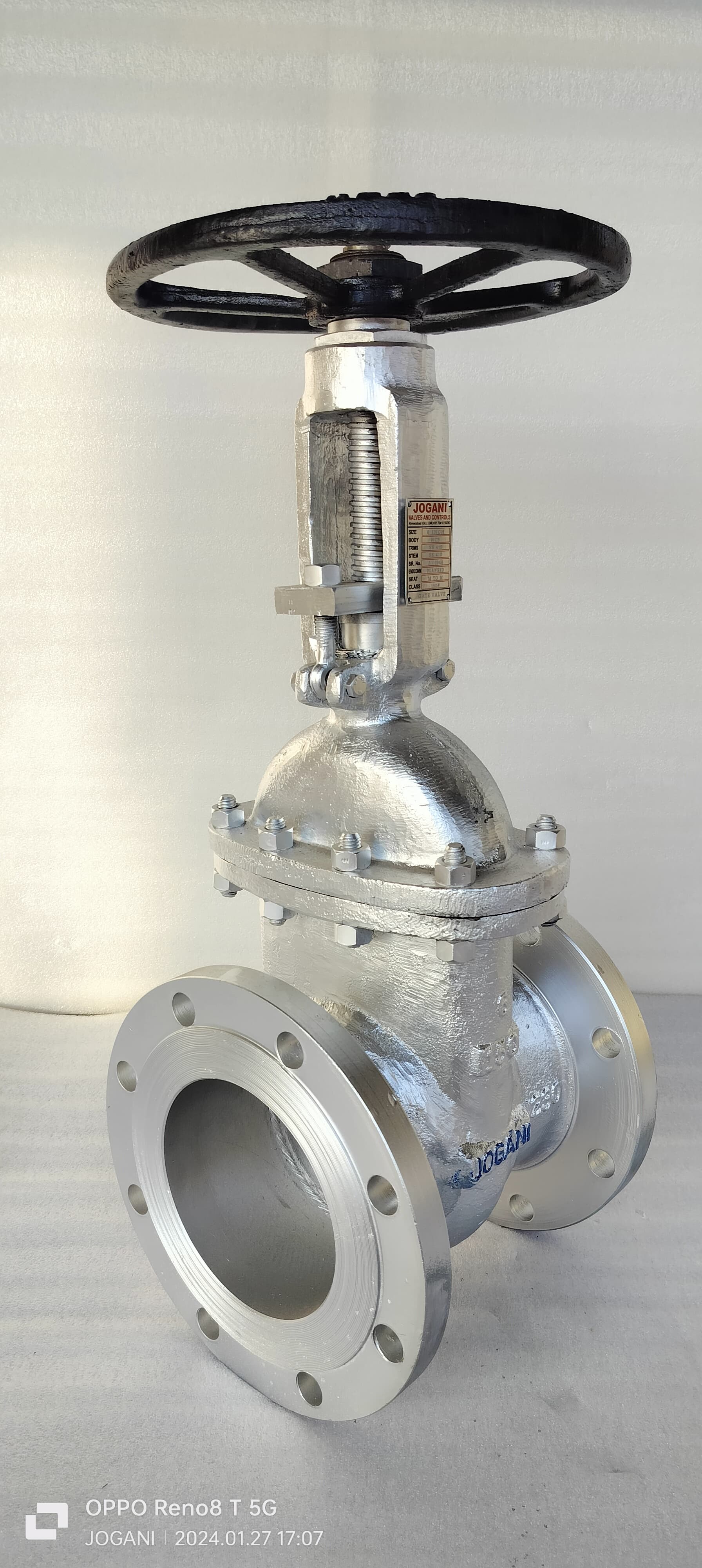

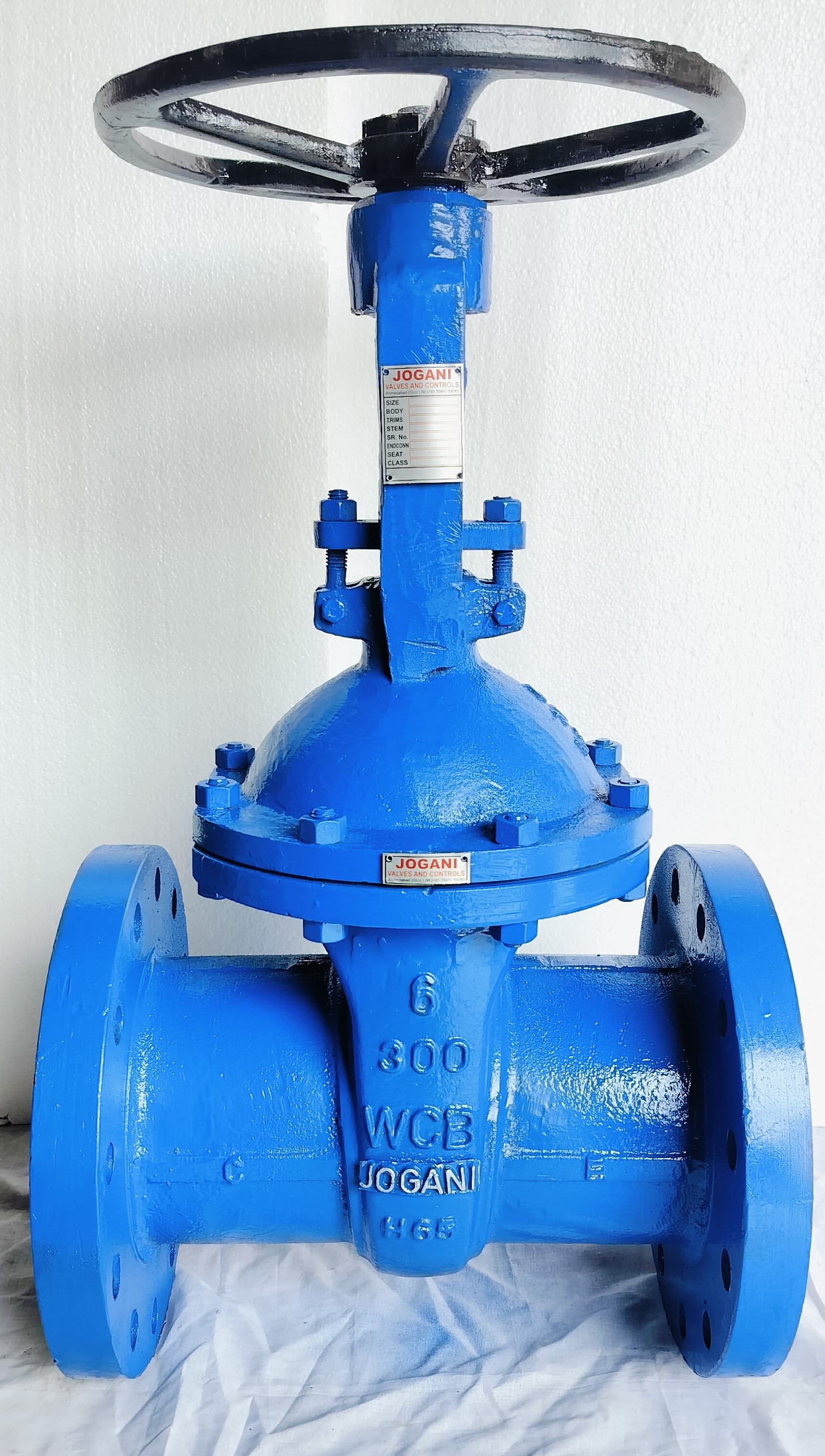

GATE VALVE (CAST FLANGED)
We, “JOGANI” are a leading manufacturer and Exporters of GATE VALVE. We have a wide range of GATE VALVE in CI, CS, SS and other metals on request. “UVI” Gate Valve mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.
"JOGANI" GATE VALVE design is developed with following and using international Standard For Having An International Competency with Global Manufacturers.
We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

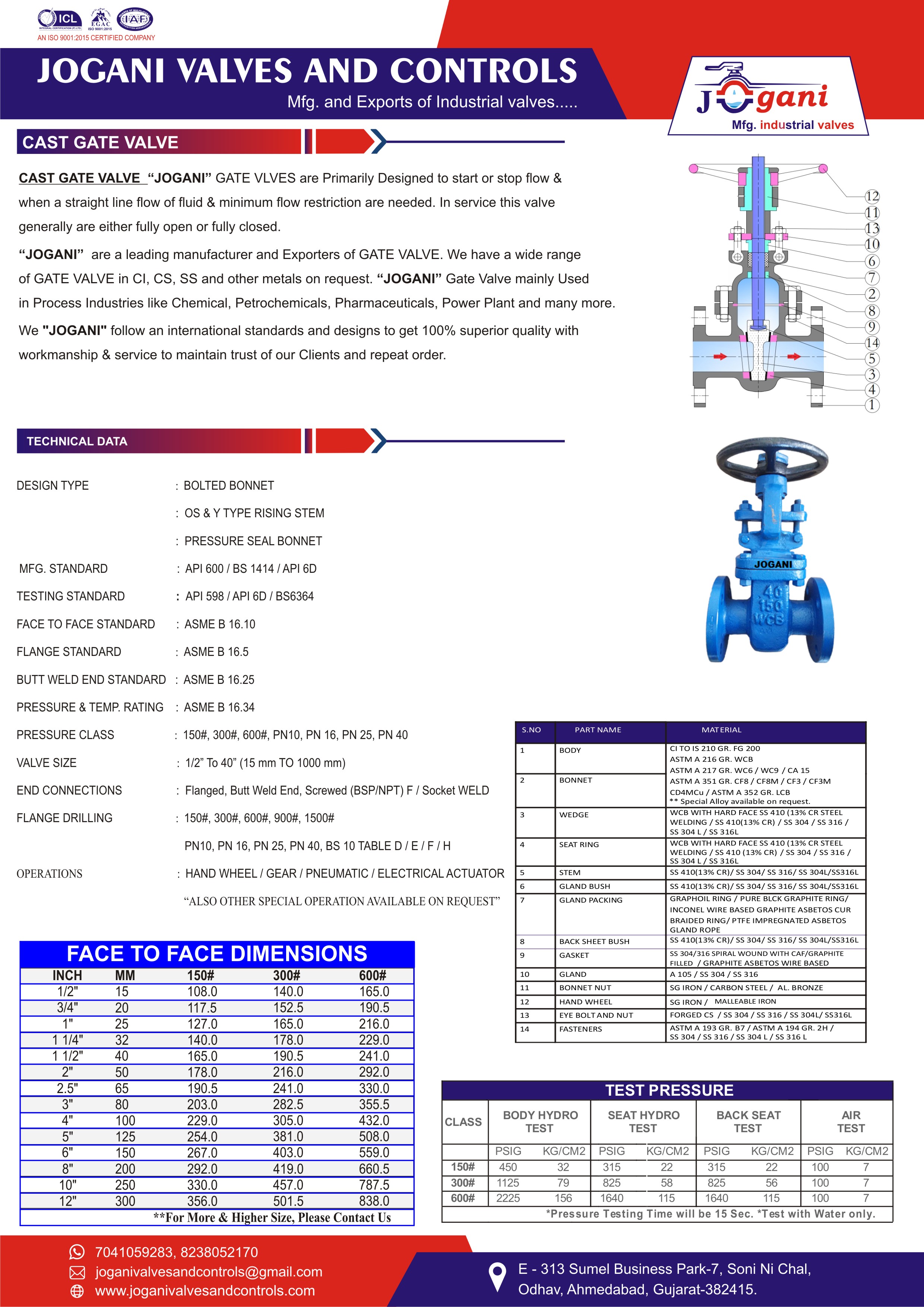

TECHNICAL DETAIL
DESIGN TYPE
BOLTED BONNET
OS & Y TYPE RISING STEM
PRESSURE SEAL BONNET
MFG. STANDARD
API 600 / BS 1414 / API 6D
TESTING STANDARD
API 598 / API 6D / BS6364
FACE TO FACE DIMENSIONS
ASME B 16.10
FLANGE STANDARD
ASME B 16.5
BUTT WELD END STANDARD
ASME B 16.25
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#, 600#, 900#, 1500#
 PN10, PN 16, PN 25, PN 40
VALVE SIZE
1/2” To 40”
(15 mm TO 1000 mm)
END CONNECTIONS
FLANGED / BUTT WELD
FLANGE DRILLING
150#, 300#, 600#, 900#, 1500#
PN10, PN 16, PN 25, PN 40
BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 217 GR. WC6 / WC9 / CA 15
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M / CD4MCu
ASTM A 352 GR. LCB
**Also Other Special Alloy available on request.
OPERATIONS
HAND WHEEL / GEAR
PNEUMATIC / ELECTRICAL ACTUATOR
**Also Other Special Operation available on request.

FACE TO FACE DIMENSIONS
INCH
MM
150#
300#
600#
1/2"
15
108.0
140.0
165.0
3/4"
20
117.5
152.5
190.5
1"
25
127.0
165.0
216.0
1 1/4"
32
140.0
178.0
229.0
1 1/2"
40
165.0
190.5
241.0
2"
50
178.0
216.0
292.0
2.5"
65
190.5
241.0
330.0
3"
80
203.0
282.5
355.5
4"
100
229.0
305.0
432.0
5"
125
254.0
381.0
508.0
6"
150
267.0
403.0
559.0
8"
200
292.0
419.0
660.5
10"
250
330.0
457.0
787.5
12"
300
356.0
501.5
838.0
**For More & Higher Size, Please Contact Us
