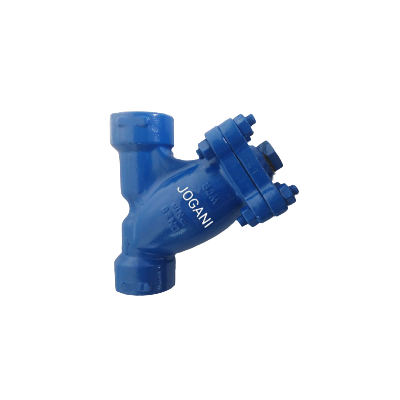

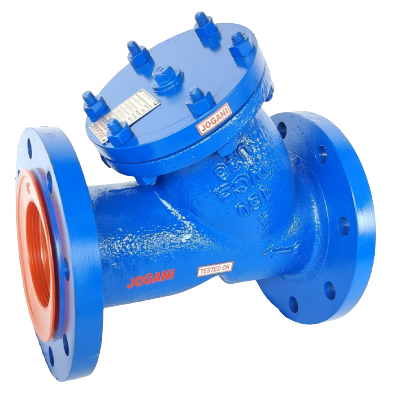

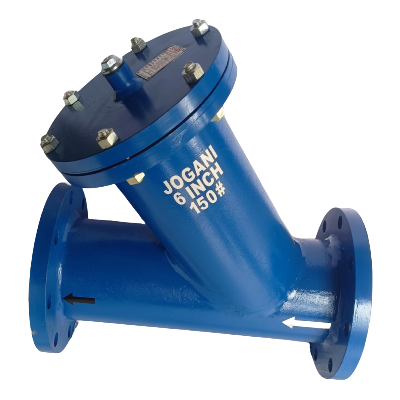

Y STRAINER

We, “JOGANI” are leading manufacturer and Exporters of “Y”-Strainer. Its Design is most cost effective products. Y strainer can be mounted vertically or horizontally in a piping system. This Y strainer is immensely used in the pipelines to protect and extend the life expectancy of the valve, Flow-Meter, Pump and other valuable equipment integrated in the downstream.
“JOGANI” provides Various MOC like CI, CS and SS to meet all separate Process Requirements. Also we provided special metal on request. “Y” Strainers are available Pressure Rating 150# / 300# / 600# with various end connection as Flanged, Screwed, Butt Weld & Socket Weld End.

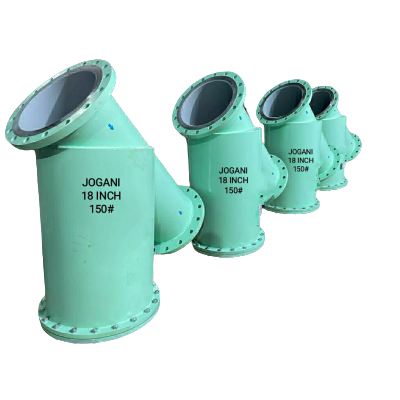

“JOGANI” having PTFE Lined, Jacketed & Fabricated Y strainers available.
“JOGANI” Y-Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Pharmaceuticals, Oil & Gas.
“JOGANI” Y-Strainer design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.
We “JOGANI” follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
Y TYPE INLINE FILTER
BOLTED COVER
JACKETED
MFG. STANDARD
ASME B 16.34 / MFG. STANDARD
TESTING STANDARD
API 598
FACE TO FACE STANDARD
MFG. STANDARD
FLANGE STANDARD
ASME B 16.5
SCREWED END STANDARD
ASME B 1.20.1
SOCKET WELD END STANDARD
ASME B 16.11
BUTT WELD END STANDARD
ASME B 16.25
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#, 600#
PN10, PN 16, PN 25, PN 40
STRAINER SIZE
1/2” To 12”
(15 mm TO 300 mm)
END CONNECTIONS
FLANGED / BUTT WELD
SCREWED (BSP / NPT) F / SOCKET WELD
FLANGE DRILLING
150#, 300#, 600#
PN10, PN 16, PN 25, PN 40
BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
**Also Other Special Alloy available on request.
MATERIAL OF MESH / FILTER
SS 304 / 304 L / 316 / 316 L
**Also Other Special Metal available on request.
