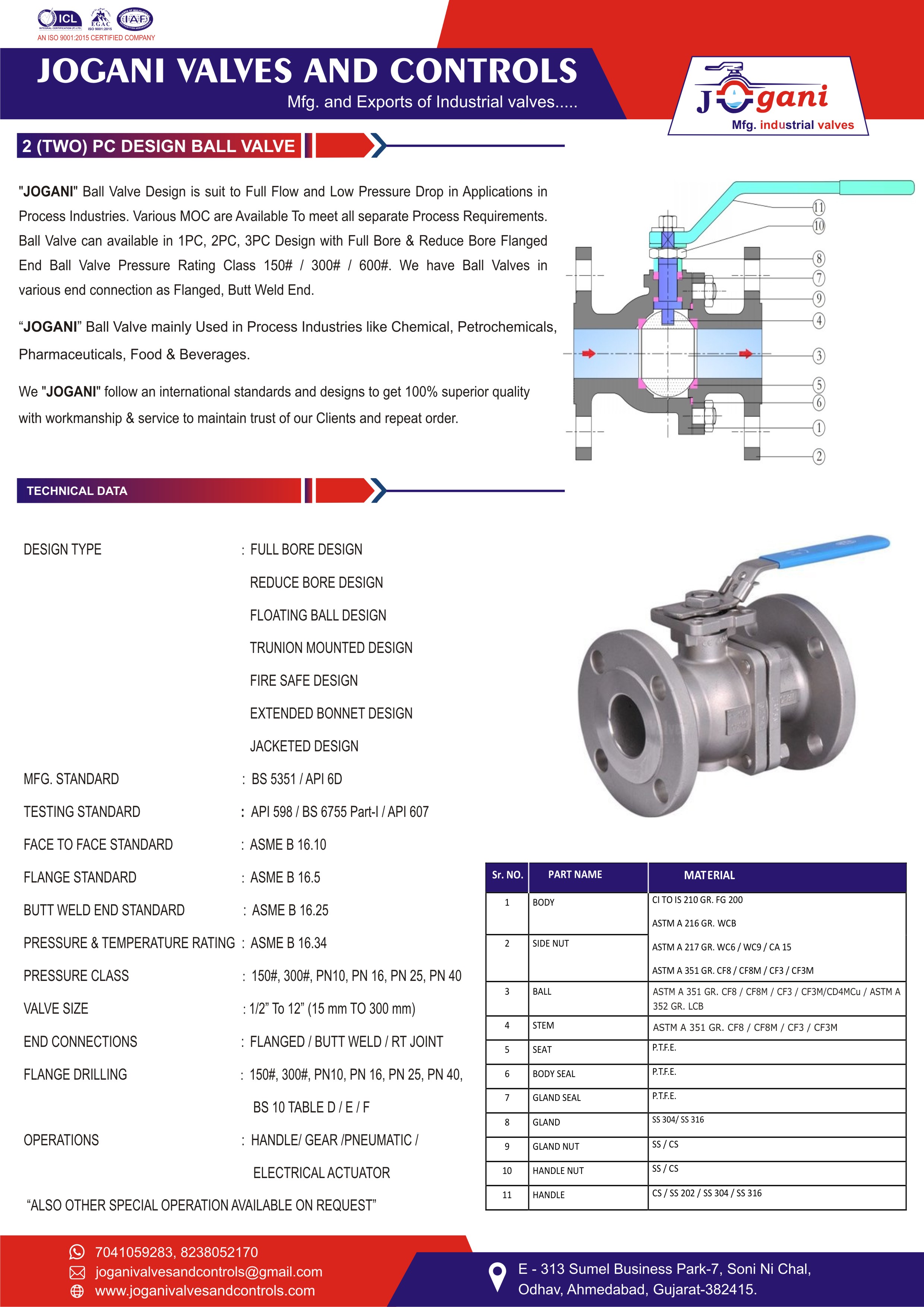

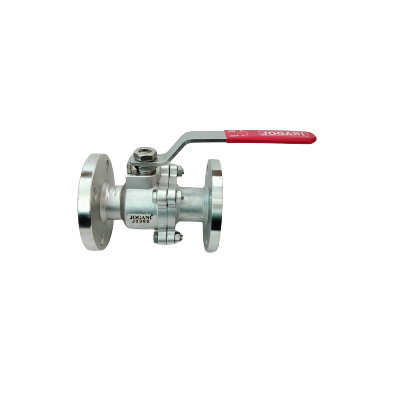

2 PC DESIGN
"Jogani" Ball Valve Design is suit to Full Flow and Low Pressure Drop in Applications in Process Industries. Various MOC are Available To meet all separate Process Requirements. Ball Valve can available in 1PC, 2PC, 3PC Design with Full Bore & Reduce Bore Flanged End Ball Valve Pressure Rating Class 150# / 300# / 600#. We have Ball Valves in various end connection as Flanged, Butt Weld End.
“Jogani” Ball Valve mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Food & Beverages.
"Jogani" Ball valve design is developed with following and using international Standard For Having An International Competency with Global Manufacturers.
We "Jogani" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
|

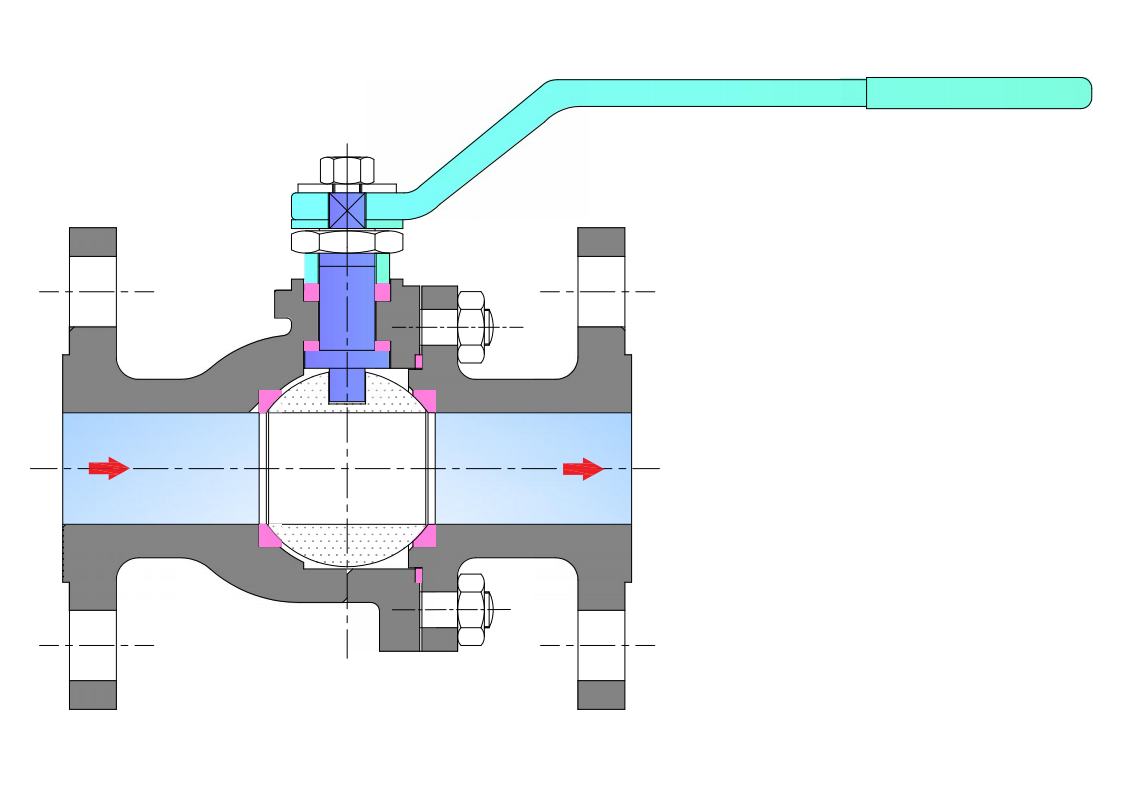

S.NO |
PART NAME |
MATERIAL |
|
1 |
BODY |
CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 217 GR. WC6 / WC9 / CA 15 ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M CD4MCu / ASTM A 352 GR. LCB ** Special Alloy available on request. |
|
2 |
SIDE PIECE |
|
|
3 |
BALL |
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M CD4MCu
/ ASTM A 352 GR. LCB |
|
4 |
STEM |
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
|
|
5 |
SEAT |
P.T.F.E.
/ CFT / GFT / PEEK |
|
6 |
BODY SEAL |
P.T.F.E.
/ CFT / GFT / PEEK |
|
7 |
GLAND SEAL |
P.T.F.E. |
|
8 |
GLAND |
SS 304/ SS 316 |
|
9 |
STUD
& NUT |
SS
/ CS |
|
10 |
GLAND NUT |
SS
/ CS |
|
11 |
HANDLE |
SS
/ MS WITH PVC SLEEVE |
