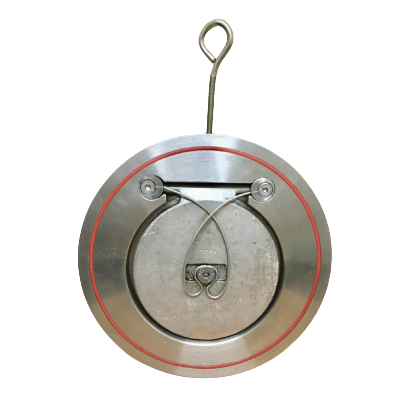

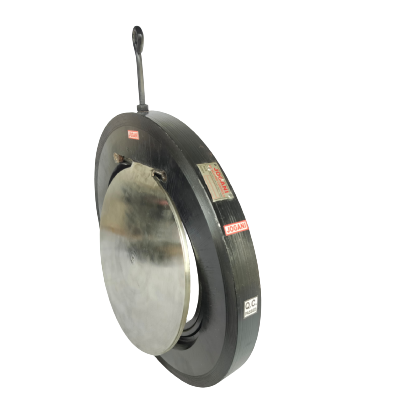

WAFER CHECK VALVE
We, “JOGANI” are a leading manufacturer and Exporters of WAFER CHECK VALVE. We have a wide range of WAFER CHECK VALVE in CI, CS, SS and other metals on request. “JOGANI” WAFER CHECK VALVE mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.
"JOGANI" WAFER CHECK VALVE design is developed with following and using international Standard for having an International Competency with Global Manufacturers.
We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
NON-SLAM
FLANGELESS
SANDWICH PATTERN
METAL TO METAL SEAT
SOFT SEAT
MFG. STANDARD
API 6D / API 594
TESTING STANDARD
API 598
FACE TO FACE STANDARD
ASME B 16.10
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#
PN10, PN 16, PN 25, PN 40
VALVE SIZE
1” To 40”
(25 mm TO 1000 mm)
INSTALLATION POSITIONS
HORIZONTAL / VERTICAL
END CONNECTIONS
WAFER TYPE (FLANGLESS)
MOUNTING BETWEEN
150#, 300#
PN10, PN 16, PN 25, PN 40
BS 10 TABLE D / E / F / H
**Between any standard flanges
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 217 GR. WC6 / WC9 / CA 15
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
**Also Other Special Alloy available on request.
FACE TO FACE DIMENSIONS
INCH
MM
150#
1"
25
16.0
1 1/4"
32
16.0
1 1/2"
40
16.0
2"
50
19.0
2.5"
65
19.0
3"
80
19.0
4"
100
19.0
5"
125
19.0
6"
150
19.0
8"
200
28.0
10"
250
28.0
12"
300
38.0
14”
350
44.0
16”
400
50.0
18”
450
60.0
20”
500
63.0
24”
600
70.0
**For More & Higher Size, Please Contact Us
TEST PRESSURE
CLASS
BODY HYDRO
TEST
SEAT HYDRO
TEST
PSIG
KG/CM2
PSIG
KG/CM2
150#
425
30
300
21
*Pressure Testing Time will be 15 Sec.
*Test with Water only.
