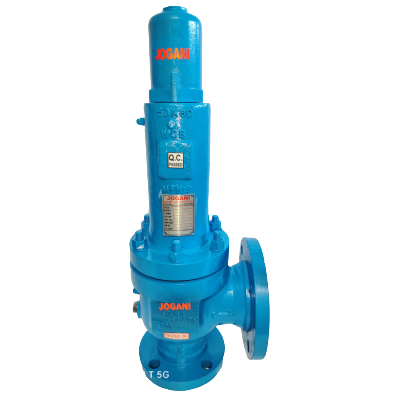

CLOSE BONNET

We, “JOGANI” are leading manufacturer and Exporters of SAFETY VALVE, having Open Bonnet and Close Bonnet design with packed lever / plain lever air tight cap options are available. Safety Valve is designed with API 520 / ASME Section Vlll – Division l to meet the requirements of API standards. This Conventional Safety Valve is versatile, safe and interchangeable.
“JOGANI” provides Various MOC like CS, SS 304 & SS 316 to meet all separate Process Requirements. Also we provided special metal on request. SAFETY VALVE is available Pressure Rating 150# / 300# / 600# with Flanged end connection.
“JOGANI” SAFETY VALVE mainly used in process industries like Chemical, Power, Steel, Marine, Pharmaceuticals, Oil & Gas.
“JOGANI” SAFET VALVE design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.
We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
OPEN BONNET
CLOSE BONNET
MFG. STANDARD
API 520, API 521
API 526, API 527
ASME Section VIII Div. I
EN ISO 4126 Part.1
TESTING STANDARD
 API 527
FLANGE STANDARD
ASME B 16.5
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#, 600#
STRAINER SIZE
1” X 2” TO 8” X 10”
(25 x 50 mm TO 200 x 250 mm)
END CONNECTIONS
FLANGED END
FLANGE DRILLING
150#, 300#, 600#
BS 10 TABLE H
MATERIAL OF CONSTRUCTIONS
ASTM A 216 GR. WCB
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
**Also Other Special Alloy available on request.


FEATURES & BENEFITS:
·        Direct Spring Operated
·        Full Nozzle & Single Trim Design
·        Available In Metal Seat Or Soft Seat.
·        Stellited And Hardened Metal Sealing (For Longer Service Life)
·        Accurate Spring Designs To Achieve Blow Down Range
For Steam - 5-10% And For Liquid -20%
·        Easy Maintenance.
·        Simple & Reliable Design
