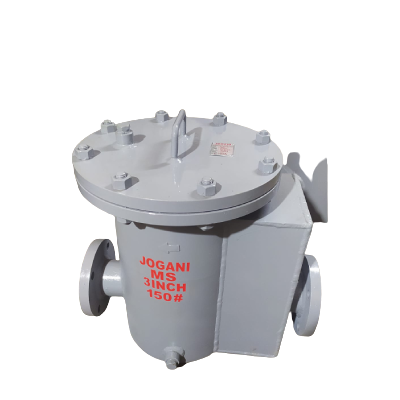

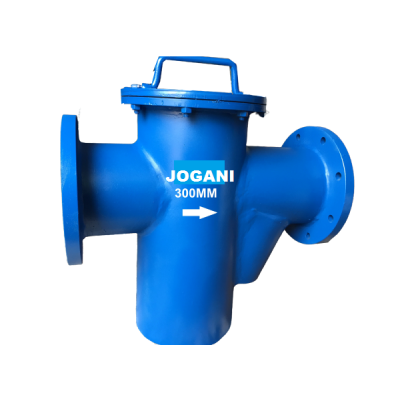

POT STRAINER

We, “JOGANI” are leading manufacturer and Exporters of POT TYPE STRAINER. This Strainer design where the strainer is shaped like a basket and it installed in a vertical and horizontal system. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal. This Pot Type Strainer is efficient to remove large amounts of impurities at once and hence has a lower pressure loss throughout the operations. Pot Type strainer is easier to clean since debris is captured in the basket. This type of Pot Type strainer is recommended to remove the large amount of the impurities from the pipelines and protect Flow-Meter, valve and other process equipment from damage.
“JOGANI” provides Various MOC like CI, CS, SS 304 / 316 to meet all separate Process Requirements. Also we provided special metal on request. Pot Type Strainers are available Pressure Rating 150# / 300# with various end connection as Flanged & Butt Weld End.
“JOGANI” Pot Type Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Cooling Water, Fertilizer Plants, Pharmaceuticals, Oil & Gas.
“JOGANI” Pot Type Strainer design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.
We “JOGANI” follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
CAST DESIGN
FABRICATED DESIGN
BOLTED COVER
MFG. STANDARD
ASME Section VIII Div. 1
TESTING STANDARD
API 598
FACE TO FACE STANDARD
MFG. STANDARD
FLANGE STANDARD
ASME B 16.5
BUTT WELD END STANDARD
ASME B 16.25
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#,
PN10, PN 16, PN 25, PN 40
STRAINER SIZE
1” To 12”
(25 mm TO 300 mm)
END CONNECTIONS
FLANGED / BUTT WELD
FLANGE DRILLING
150#, 300#
PN10, PN 16, PN 25, PN 40
BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
CS (ASTM A 106 GR. A/B/C Seamless Pipe) /
MS (IS 2062 / 1239 / 3589 ERW Pipe ) /
SS 304 / 304 L / SS 316 / 316 L (ASTM A 312 Pipe)
**Also Other Special Metal available on request.
MATERIAL OF MESH / FILTER
SS 304 / 304 L / 316 / 316 L
**Also Other Special Metal available on request.

FACE TO FACE DIMENSIONS
(FLANGED)
INCH
MM
150#
1"
25
250.0
1 1/2"
40
310.0
2"
50
310.0
2.5"
65
310.0
3"
80
350.0
4"
100
380.0
5"
125
450.0
6"
150
450.0
8"
200
515.0
10"
250
600.0
12"
300
700.0
**For More & Higher Size, Please Contact Us
TEST PRESSURE
CLASS
BODY HYDRO
TEST

PSIG
KG/CM2
150#
225
15
*Pressure Testing Time will be 15 Sec.
*Test with Water only.

FEATURES & BENEFITS:
·        Easy Installation & Low maintenance.
·        Low Pressure drop across the filter.
·        Large dirt holding capacity, longer cleaning cycle time.
·        Remove foreign particles, lumps, debris
·        Easy cleaning or replacing the element
·        Wire mesh up to 5 Micron.
·        Adequate strength of element and housing
·        Interchangeability of component with another of the same type
