FORGED STEEL

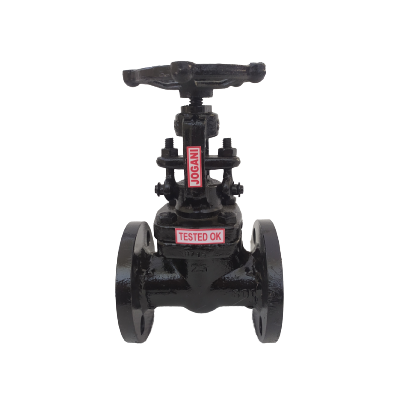

GLOBE VALVE (FORGED)
We, “JOGANI” are a leading manufacturer and Exporters of FORGED GLOBE VALVE. We have a wide range of FORGED GLOBE VALVE in A 105, F304, F316 and many more other metals on request. “JOGANI” FORGED GLOBE VALVE mainly Used in Process Industries and High Pressure Application in Industries.
"JOGANI" FORGED GLOBE VALVE design is developed with following and using international Standard for having an International Competency with Global Manufacturers.
We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL | |
DESIGN TYPE | OS & Y TYPE RISING STEM PRESSURE SEAL BONNET STRAIGHT TYPE Y- TYPE NEEDLE TYPE |
MFG. STANDARD | API 602 /BS 5352 |
TESTING STANDARD | API 598 / BS 6755 |
SCREWED END | ASME B 1.20.1 |
SOCKET WELD END | ASME B 16.11 |
PRESSURE & TEMPERATURE RATING | ASME B 16.34 |
PRESSURE CLASS | 800#, 1500#, 2500# |
VALVE SIZE | 1/2” To 2” (15 mm TO 50 mm) |
END CONNECTIONS | SCREWED (BSP / NPT) F / SOCKET WELD |
MATERIAL OF CONSTRUCTIONS | ASTM A 105 / LF2 / F11 / F22 ASTM A 182 GR. F304 / F304L **Also Other Special Alloy available on request. |
OPERATIONS | HAND WHEEL / GEAR PNEUMATIC / ELECTRICAL ACTUATOR **Also Other Special Operation available on request. |
FACE TO FACE DIMENSIONS | |||||
INCH | MM | 800# | 1500# | 2500# | |
1/2" | 15 | 90.0 | 93.0 | 108.0 | |
3/4" | 20 | 93.0 | 108.0 | 128.0 | |
1" | 25 | 108.0 | 128.0 | 128.0 | |
1 1/4" | 32 | 128.0 | 128.0 | 145.0 | |
1 1/2" | 40 | 128.0 | 145.0 | ---- | |
2" | 50 | 145.0 | ---- | ---- | |
**For More & Higher Size, Please Contact Us | |||||
TEST PRESSURE | ||||||||
CLASS | BODY HYDRO TEST | SEAT HYDRO TEST | BACK SEAT TEST | AIR TEST | ||||
| PSIG | KG/CM2 | PSIG | KG/CM2 | PSIG | KG/CM2 | PSIG | KG/CM2 |
800# | 3000 | 211 | 2176 | 153 | 2176 | 153 | 100 | 7 |
1500# | 5546 | 390 | 4124 | 290 | 4124 | 290 | 100 | 7 |
2500# | 9314 | 655 | 6897 | 485 | 6897 | 485 | 100 | 7 |
**Pressure Testing Time will be 15 Sec. *Test with Water only. | ||||||||
