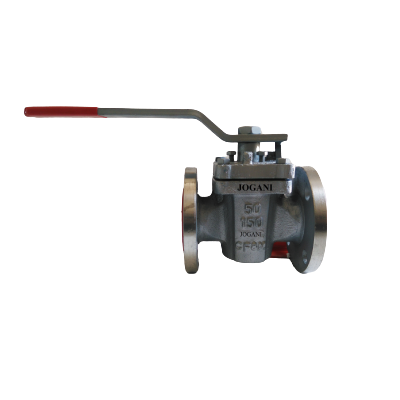

PLUG VALVE (PTFE SLEEVE)

We, “JOGANI” are a leading manufacturer and Exporters of PTFE SLEEVE PLUG VALVE. We have a wide range of PTFE SLEEVE PLUG VALVE in CI, CS, SS and other metals on request. PTFE Sleeve Plug Valve mainly used in Process Industries like Chemical, Petrochemicals, Steel, Mining, Power Plant and many more. PTFE Sleeve Plug valve have a easy automation and caged plug assembly, which protects seat from erosion in throttling application due to quick quarter turn operation.

"JOGANI" PTFE SLEEVE PLUG VALVE design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	PTFE SLEEVE PTFE LINED HALF JACKETED FULL JACKETED
MFG. STANDARD	API 599 / BS 5353
TESTING STANDARD	API 598 / API 6D / EN 12266-1
FACE TO FACE DIMENSIONS	ASME B 16.10
FLANGE STANDARD	ASME B 16.5
SCREWED END STANDARD	ASME B 1.20.1
PRESSURE & TERMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300# PN10, PN 16
VALVE SIZE	1/2” To 12” (15 mm TO 300 mm)
END CONNECTIONS	FLANGED SCREWED END (BSP / NPT) F
FLANGE DRILLING	150#, 300#, PN10, PN 16 BS 10 TABLE D / E / F
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 217 GR. WC6 / WC9 / CA 15 ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M / CD4MCu ASTM A 352 GR. LCB **Also Other Special Alloy available on request.
OPERATIONS	HAND LEVER (WRENCH) / GEAR PNEUMATIC / ELECTRICAL ACTUATOR **Also Other Special Operation available on request.
