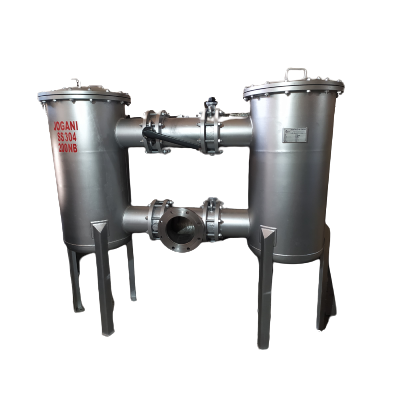

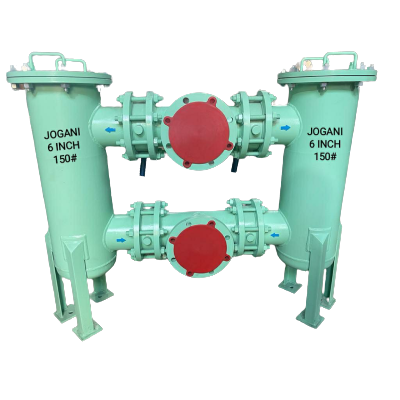

DUPLEX STRAINER

We, “JOGANI” are leading manufacturer and Exporters of DUPLEX STRAINER. Our Duplex Strainers Design is Fabricated Construction. Duplex Strainer is mostly used in continuous process cycle operation. In this design flow cannot interrupted on cleaning of basket filter inside element. Due to the presence of large filtration area, pressure drop is minimal. Main benefit of Duplex Strainer when one Strainer is in operation then second is kept isolated & kept ready for next Cleaning Cycle. Duplex Strainer system is used valve (Three Way Ball Valves or Butterfly Valve) between two baskets to divert the flow of liquid. When Screen of one Strainer is clogged, flow is diverted to next housing through Valves. It provides ease of cleaning is it can be cleaned anytime as per the conveniences
“JOGANI” provides Various MOC like CS, SS 304 / 316 to meet all separate Process Requirements. Also we provided special metal on request. DUPLEX STRAINERS are available Pressure Rating 150# / 300# with various end connection as Flanged & Butt Weld End. We also offer customized design to our client as per their requirement.
“JOGANI” Duplex Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Cooling Water, Fertilizer Plants, Pharmaceuticals, Oil & Gas.
“JOGANI” Duplex Strainer design is developed for having an International Competency with Global Manufacturers.
We “JOGANI” follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
TECHNICAL DETAIL
DESIGN TYPE
BOLTED COVER
DAVIT ARM COVER
MFG. STANDARD
ASME Section VIII Div. 1
TESTING STANDARD
API 598
FACE TO FACE STANDARD
MFG. STANDARD
FLANGE STANDARD
ASME B 16.5
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#,
PN10, PN 16, PN 25, PN 40
STRAINER SIZE
1” To 24”
(25 mm TO 600 mm)
END CONNECTIONS
FLANGED END
FLANGE DRILLING
150#, 300#
PN10, PN 16, PN 25, PN 40
BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS
CS (ASTM A 106 GR. A/B/C Seamless Pipe) /
MS (IS 2062 / 1239 / 3589 ERW Pipe ) /
SS 304 / 304 L / SS 316 / 316 L (ASTM A 312 Pipe)
**Also Other Special Metal available on request.
MATERIAL OF MESH / FILTER
SS 304 / 304 L / 316 / 316 L
**Also Other Special Metal available on request.

FEATURES & BENEFITS:
·        Easy Installation & Low maintenance.
·        Low Pressure drop across the filter.
·        Large dirt holding capacity, longer cleaning cycle time.
·        Continuous flow, No need to stop systems for cleaning
·        Remove foreign particles, lumps, debris
·        Easy cleaning or replacing the element
·        Wire mesh up to 5 Micron.
·        Drain Available for fast draining
·        Adequate strength of element and housing
·        Interchangeability of component with another of the same type
