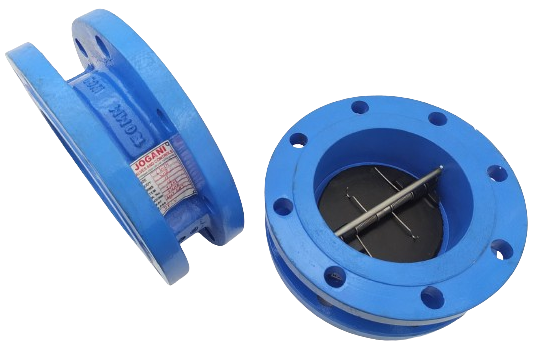

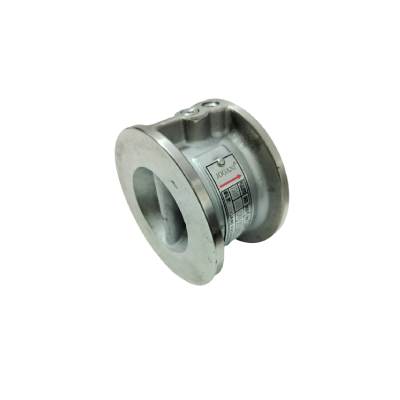

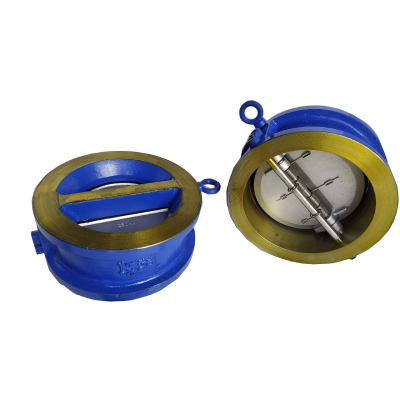

DUAL PLATE CHECK VALVE

We, “JOGANI” are a leading manufacturer and Exporters of DUAL PLATE CHECK VALVE. We have a wide range of DUAL PLATE CHECK VALVE in CI, CS, SS and other metals on request. “JOGANI” DUAL PLATE CHECK VALVE mainly used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.

"JOGANI" DUAL PLATE CHECK VALVE design is developed with following and using international Standard for having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	WAFER TYPE LUGGED END DOUBLE FLANGED END
MFG. STANDARD	API 594 / API 6D
TESTING STANDARD	API 598 / API 6D / BS 6755 PART 1
FACE TO FACE STANDARD	ASME B 16.10 / API 594 / API 6D
PRESSURE & TERMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300# PN10, PN 16, PN 25, PN 40
VALVE SIZE	2” To 48” (50 mm TO 1200 mm)
END CONNECTIONS	WAFER TYPE, FLANGELESS SANDIWCH PATTERN DOUBLE FLANGED END
MOUNTING BETWEEN	150#, 300# PN10, PN 16, PN 25, PN 40 BS 10 TABLE D / E / F / H **Between any standard flanges
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M **Also Other Special Alloy available on request.

FACE TO FACE DIMENSIONS
INCH	MM	150#
2"	50
2½”	65
3"	80
4"	100
5"	125
6"	150
8"	200
10"	250
12"	300
14”	350
16”	400
18”	450
20”	500
22”	550
24”	600
**For More & Higher Size, Please Contact Us

TEST PRESSURE
CLASS	BODY HYDRO TEST		SEAT HYDRO TEST
	PSIG	KG/CM2	PSIG	KG/CM2
150#	425	30	300	21
Pressure Testing Time will be 15 Sec. Test with Water only.

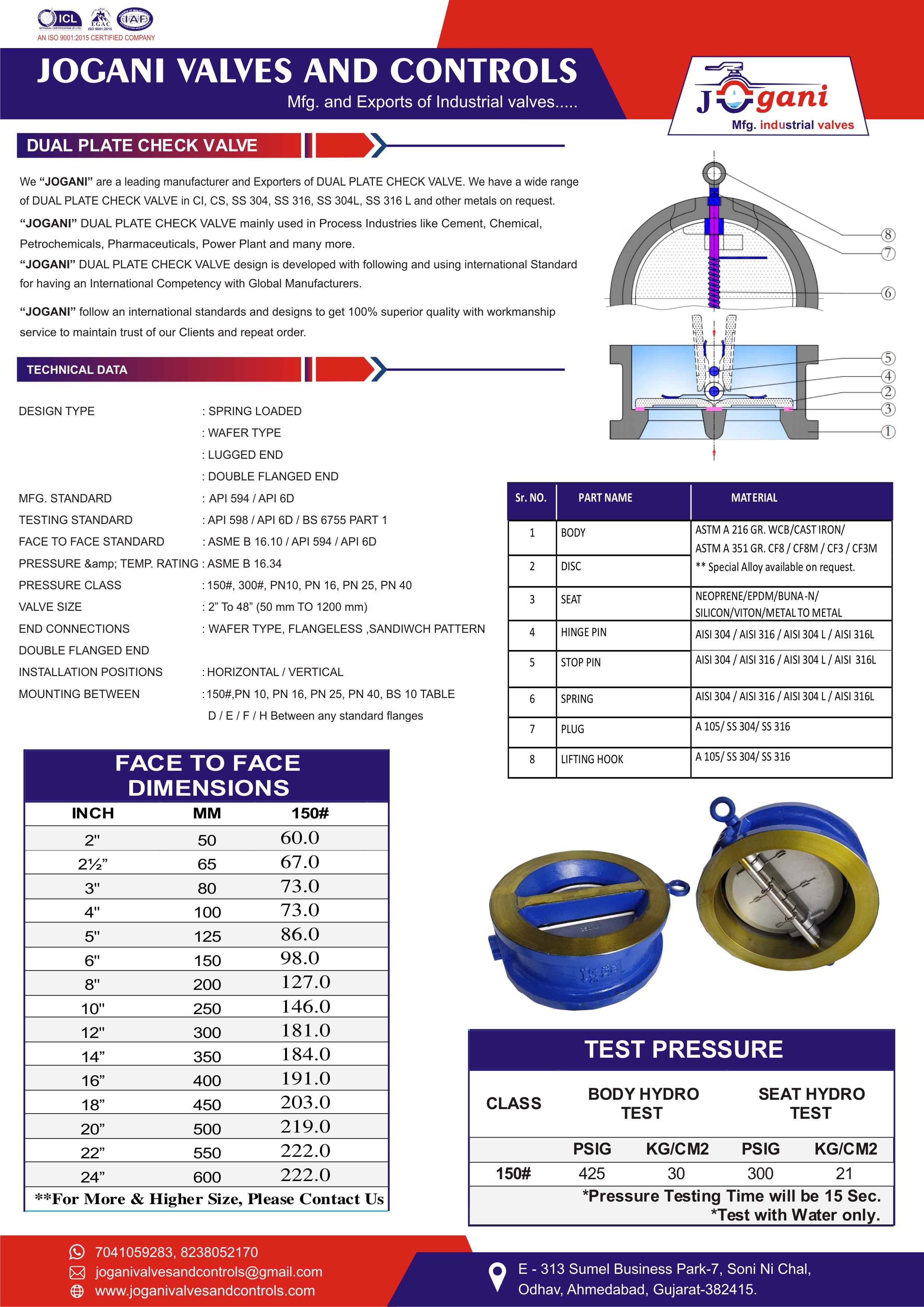

View Catalogue
