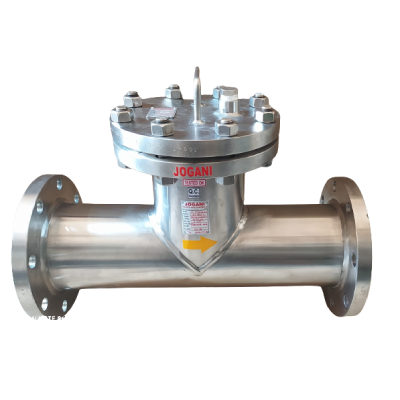

TEE STRAINER

We, JOGANI are leading manufacturer and Exporters of “TEE” Strainer. TEE Strainer design are compact in size and shape. It used in applications where problem space. "TEE" Strainer can be mounted vertically or horizontally in a piping system. “TEE” Strainers derive its name from the shape of its configuration that looks like “T”. "TEE" Strainer is manufacturing using Pipe,  Plate, Equal Tee & Flange. "TEE" Strainers are low cost solution to large nominal bore straining requirements.

JOGANI “TEE” strainer is mostly used in the pipelines to protect and extend the life expectancy of the valve, Flow-Meter, Pump and other valuable equipment integrated in the downstream.

JOGANI provides Various MOC like CI, CS and SS to meet all separate Process Requirements. Also we provided special metal on request. “TEE” Strainers are available Pressure Rating 150# / 300# / 600# with various end connection as Flanged, Butt Weld & Socket Weld End.

JOGANI “TEE” Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Pharmaceuticals, Oil & Gas.

JOGANI TEE Strainer design is developed with following and using international Standard for Having an International Competency with Global Manufacturers.

We JOGANI follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL

DESIGN TYPE

CAST DESIGN

FABRICATED DESIGN

MFG. STANDARD

MFG. STANDARD

TESTING STANDARD

API 598

FACE TO FACE STANDARD

MFG. STANDARD

FLANGE STANDARD

ASME B 16.5

BUTT WELD END STANDARD

ASME B 16.25

PRESSURE & TEMPERATURE RATING

ASME B 16.34

PRESSURE CLASS

150#, 300#,

PN10, PN 16, PN 25, PN 40

STRAINER SIZE

1/2” To 12”

(15 mm TO 300 mm)

END CONNECTIONS

FLANGED / BUTT WELD

FLANGE DRILLING

150#, 300#, 600#

PN10, PN 16, PN 25, PN 40

BS 10 TABLE D / E / F / H

MATERIAL OF CONSTRUCTIONS

CI TO IS 210 GR. FG 200

ASTM A 216 GR. WCB

ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M

**Also Other Special Alloy available on request.

MATERIAL OF MESH / FILTER

SS 304 / 304 L / 316 / 316 L

**Also Other Special Metal available on request.



TEST PRESSURE

CLASS

BODY HYDRO

TEST



PSIG

KG/CM2

150#

450

32

300#

1125

79

*Pressure Testing Time will be 15 Sec, *Test with Water only.



FEATURES & BENEFITS:

·        Most Cost effective

·        Easy Installation & Low maintenance.

·        Low Pressure drops across the filter.

·        Remove foreign particles, lumps, debris

·        Easy cleaning

·        Wire mesh up to 5 Micron.
