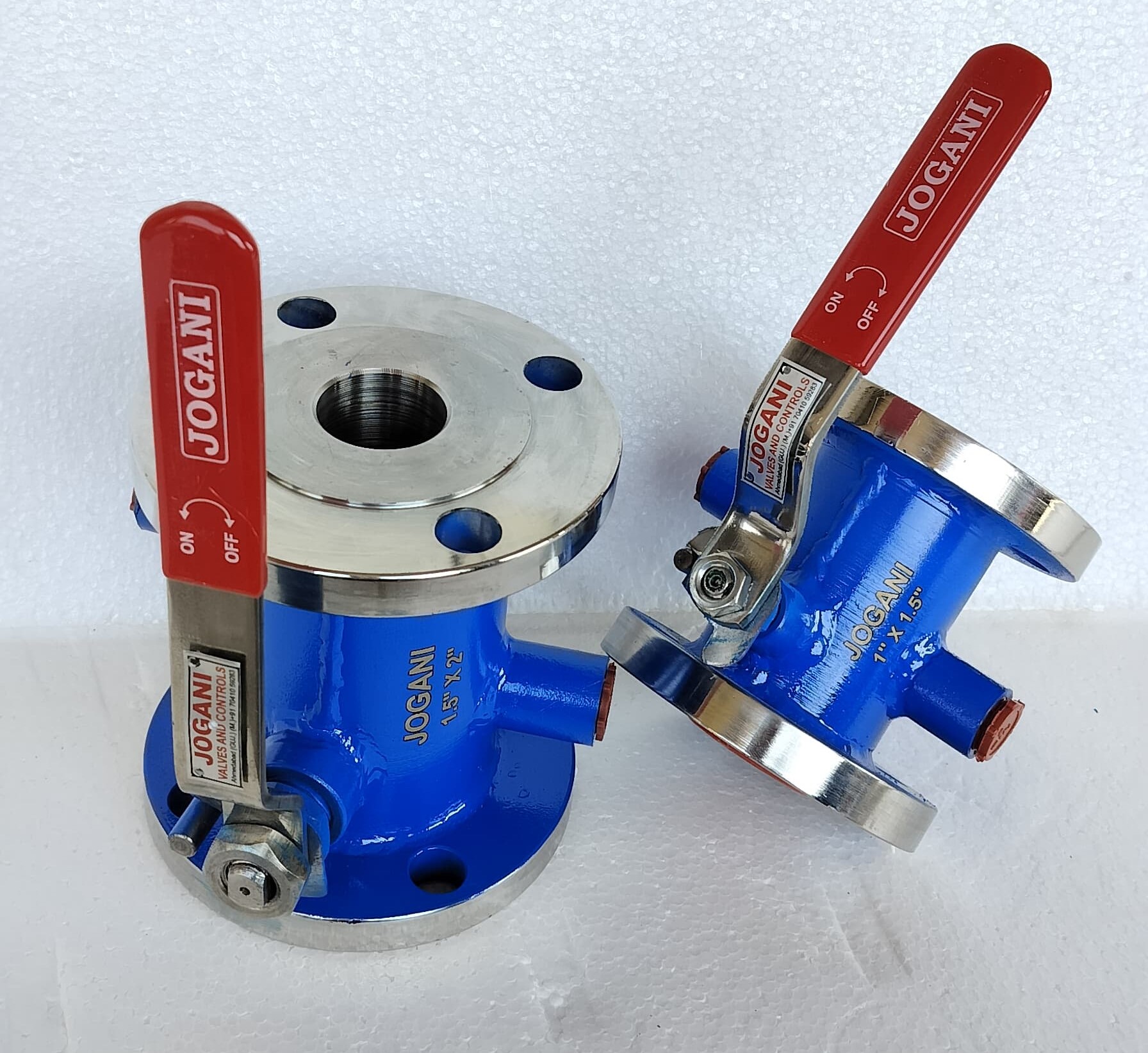

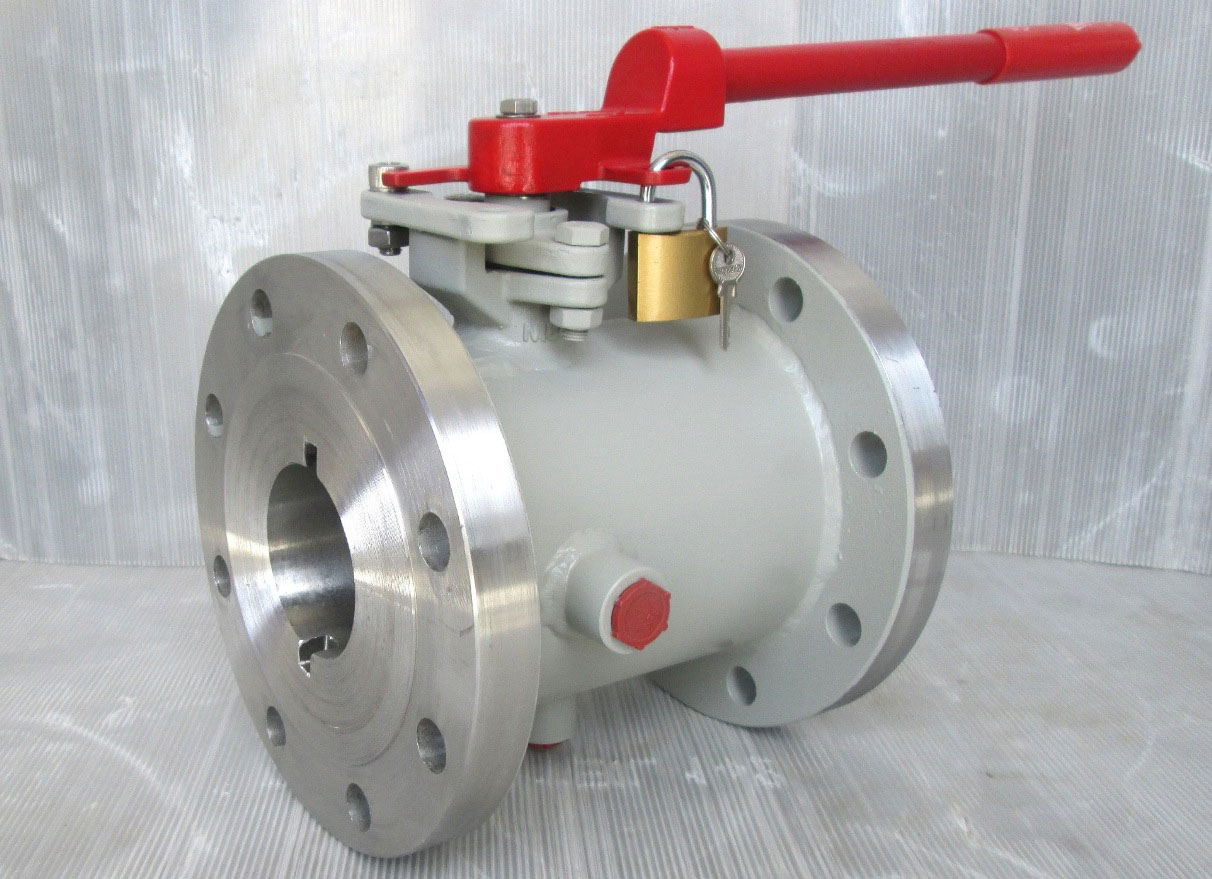

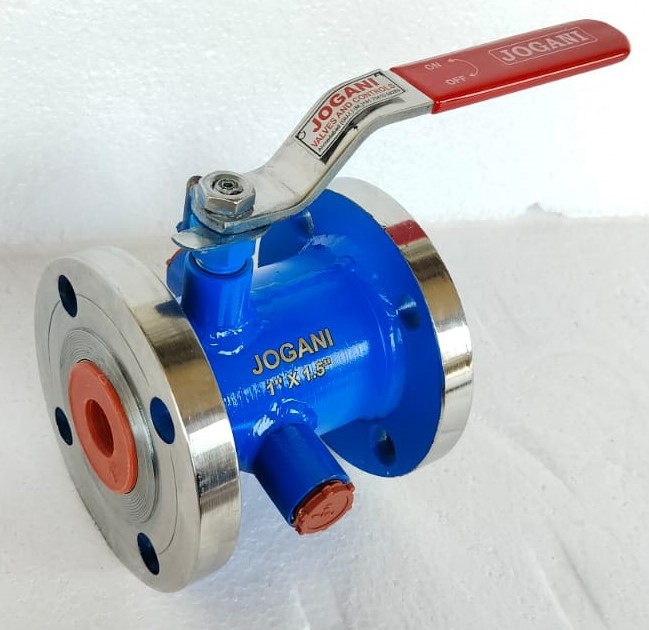

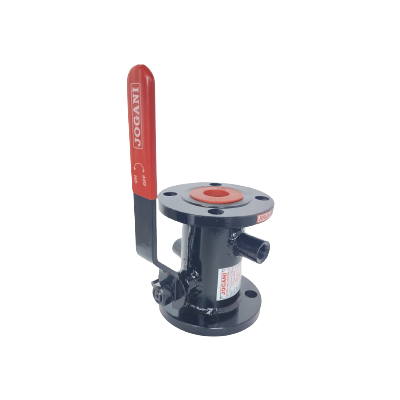

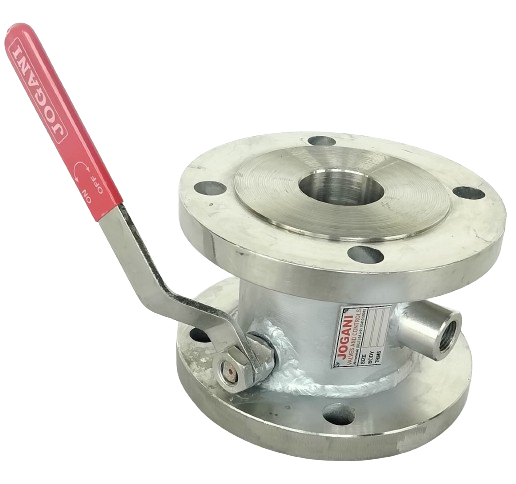

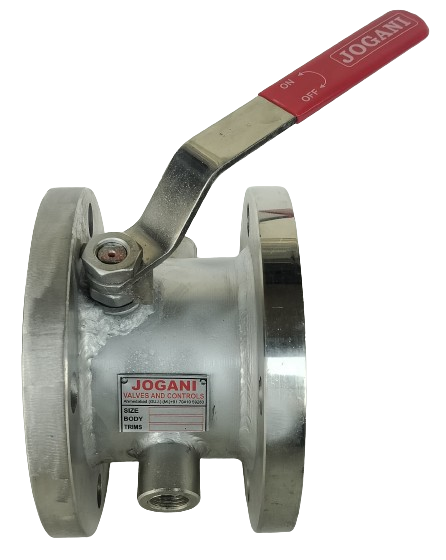

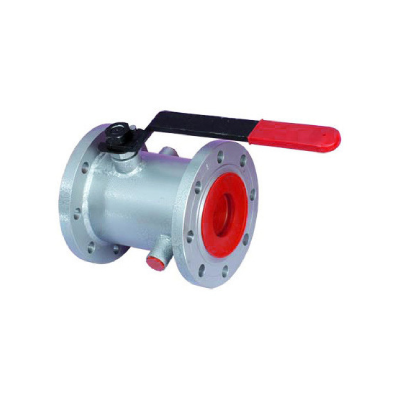

JACKETED BALL VALVE

"JOGANI" Jacketed Ball Valves largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Each Jacketed Ball Valve body construction replace by adding minimum one size higher flanges to achieve proper tighten space of bolt and nut.
As example: for Full Jacketed Ball Valve Size DN50 x DN80 (2” x 3”), Jacketed Ball Valve has the nominal bore of DN50 (2” – 50MM) and the flange size DN80 (3” – 80MM), which allows enough space for bolting clearance after jacket fabricated (welded) on modified valve body. These types of jacketed ball valve termed as a Full Jacketed Ball Valve.
We are Jacketed Ball Valves manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
 Key Features:-
·
Jacket:
The primary
feature is the jacket, which can be used for heating or cooling.
·
Temperature Control:
The jacket helps
maintain the desired temperature of the process fluid, preventing unwanted
changes in viscosity or solidification.
·
Corrosion Resistance:
Many jacketed
ball valves are made from corrosion-resistant materials like stainless steel,
ensuring long-term reliability.
·
Flanged Connections:
They often have
flanged connections for easy integration into piping systems.
·
Versatile Applications:
Suitable for
various industries, including petroleum, chemical, pharmaceutical, and food
processing, where precise temperature control is crucial.









Sr. NO.




PART NAME




MATERIAL







1




BODY




ASTM A 216 GR WCB / ASTM A 351 GR. CF8 / ASTM A
  351 GR. CF8M / ASTM A 105 / ASTM A 182 GR. F304 / ASTM A 182 GR. F316 / SS
  304 / MS / SS 316 / A 217 C5, A 217 C12, A 217 C12A, A 217 WC6, A 217 WC9

** Special Alloy available on request.







2




JACKET







3




BALL







4




STEM




SS 304 / SS 316 / SS 304 L / SS 316L







5




SEAT




P.T.F.E. / GFT / CFT







6




BODY SEAL







7




GLAND SEAL







8




GLAND




SS 304/ SS 316







9




FASTENERS




ASTM A 193 GR B7 / A 194 GR 2H / SS 304 / SS
  316







10




LEVER




SS / CS







11




LEVER NUT




SS / CS







12




SLEEVE




PVC







13




COUPLING




MS / SS 304 / SS 316
