JACKETED VALVE

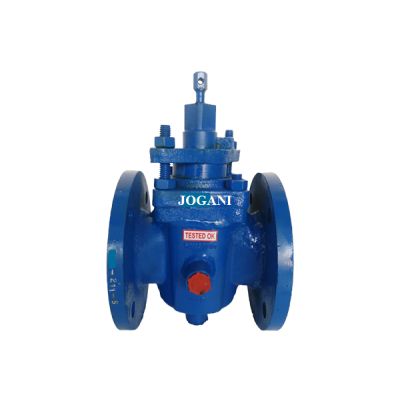

PLUG VALVE
We, “JOGANI” are a leading manufacturer and Exporters of PLUG VALVE. We have a wide range of PLUG VALVE in CI, CS, SS and other metals on request. “JOGANI” Plug Valve mainly used to move liquids or gases in Process Industries like Chemical, Petrochemicals, Steel, Textiles, Pharma, Power Plant and many more.
"JOGANI" PLUG VALVE design is developed with following and using international Standard For Having An International Competency with Global Manufacturers.
We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.
JACKETED DESIGN
We, “JOGANI” offers a Jacketed Plug Valve. Its available different type of Jacket like Half Jacket and Full Jacket. Jacketed valve mostly used in High Temperature line. In Jacketed valve flange used higher size.
Heating or Cooling jackets are required where the process temperature must be maintained throughout the valve in order to keep the process media fluid at a constant temperature. In particular, where there is potential for media to be trapped within a closed valve the heating jacket can be vital in maintaining the process temperature and preventing the trapped product from solidifying.
This applies especially to media like liquid asphalt, Sulphur, bitumen resins, etc. In addition, the efficient flow of media is ensured through the elimination of pockets. For Jacket heating process used heating media like Thermic Fluid, Steam, Hot Oil or Hot Water. After Jacket welded (Fabricated) on valve body, every valve tested after the fabrication. Jacket Air and Hydraulic Test is carried out at 6 Bar Pressure.
TECHNICAL DETAIL
DESIGN TYPE
LUBRICATED
HALF JACKETED
FULL JACKETED
MFG. STANDARD
API 599 / BS 5353
TESTING STANDARD
API 598 / API 6D / EN 12266-1
FACE TO FACE DIMENSIONS
ASME B 16.10
FLANGE STANDARD
ASME B 16.5
SCREWED END STANDARD
ASME B 1.20.1
PRESSURE & TEMPERATURE RATING
ASME B 16.34
PRESSURE CLASS
150#, 300#
 PN10, PN 16
VALVE SIZE
1/2” To 12”
(15 mm TO 300 mm)
END CONNECTIONS
FLANGED
SCREWED END (BSP / NPT) F
FLANGE DRILLING
150#, 300#, PN10, PN 16
BS 10 TABLE D / E / F
MATERIAL OF CONSTRUCTIONS
CI TO IS 210 GR. FG 200
ASTM A 216 GR. WCB
ASTM A 217 GR. WC6 / WC9 / CA 15
ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M / CD4MCu
ASTM A 352 GR. LCB
**Also Other Special Alloy available on request.
OPERATIONS
HAND LEVER (WRENCH) / GEAR
PNEUMATIC / ELECTRICAL ACTUATOR
**Also Other Special Operation available on request.
