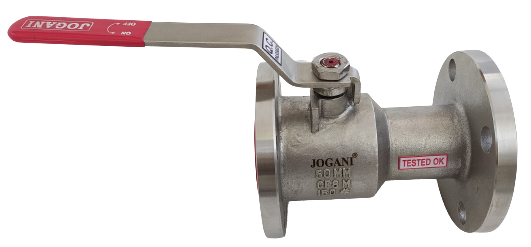

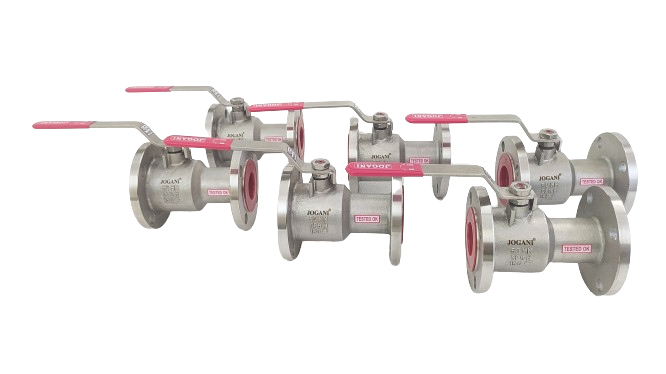

1 PC DESIGN

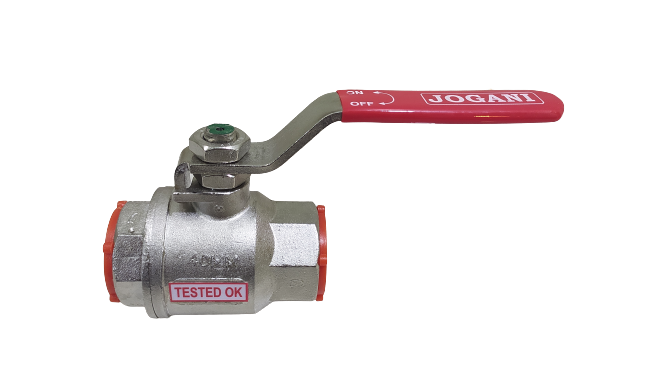

"JOGANI" Ball Valve Design is suit to Full Flow and Low Pressure Drop in Applications in Process Industries. Various MOC are Available To meet all separate Process Requirements. Ball Valve can available in 1PC, 2PC, 3PC Design with Full Bore & Reduce Bore Flanged End Ball Valve Pressure Rating Class 150# / 300# / 600#. We have Ball Valves in various end connection as Flanged, Butt Weld End, Screwed (BSP/NPT) F / Socket Weld End.

“JOGANI” Ball Valve mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Food & Beverages.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	FULL BORE DESIGN REDUCE BORE DESIGN FLOATING BALL DESIGN TRUNION MOUNTED DESIGN FIRE SAFE DESIGN EXTENDED BONNET DESIGN JACKETED DESIGN
MFG. STANDARD	BS 5351 / API 6D
TESTING STANDARD	API 598 / BS 6755 Part-I / API 607
FACE TO FACE STANDARD	ASME B 16.10
FLANGE STANDARD	ASME B 16.5
BUTT WELD END STANDARD	ASME B 16.25
PRESSURE & TEMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300# PN10, PN 16, PN 25, PN 40
VALVE SIZE	1/2” To 6” (15 mm TO 150 mm)
END CONNECTIONS	FLANGED / BUTT WELD / RT JOINT
FLANGE DRILLING	150#, 300#, PN10, PN 16, PN 25, PN 40 BS 10 TABLE D / E / F / H
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 217 GR. WC6 / WC9 / CA 15 ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M CD4MCu / ASTM A 352 GR. LCB **Also Other Special Alloy available on request.
OPERATIONS	HANDLE / GEAR / PNEUMATIC / ELECTRICAL ACTUATOR **Also Other Special Operation available on request.

TEST PRESSURE
CLASS	BODY HYDRO TEST		SEAT HYDRO TEST		AIR TEST
	PSIG	KG/CM2	PSIG	KG/CM2	PSIG	KG/CM2
150#	450	32	315	22	100	7
300#	1125	79	825	58	100	7
600#	2225	156	1640	115	100	7
Pressure Testing Time will be 15 Sec. Test with Water only.

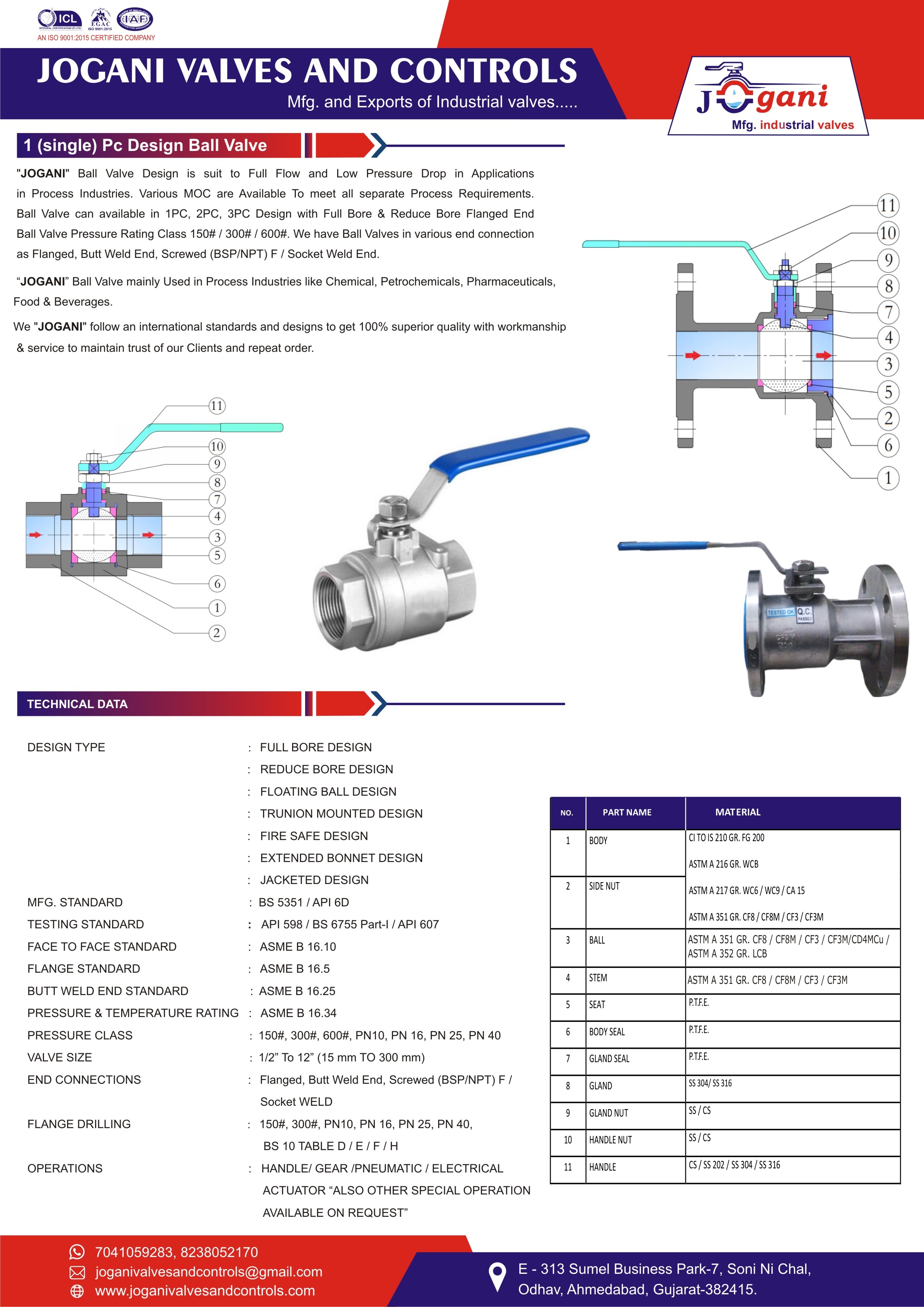

View Catalogue
