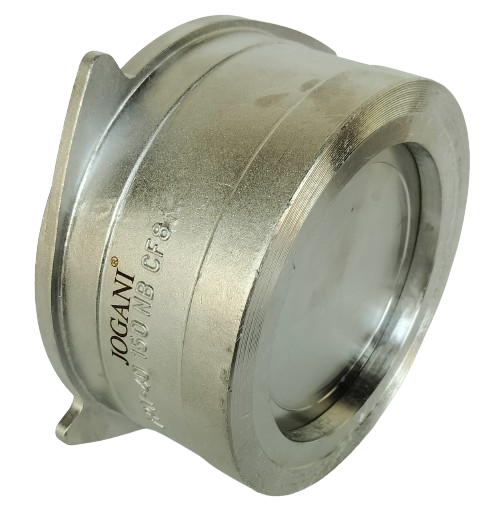

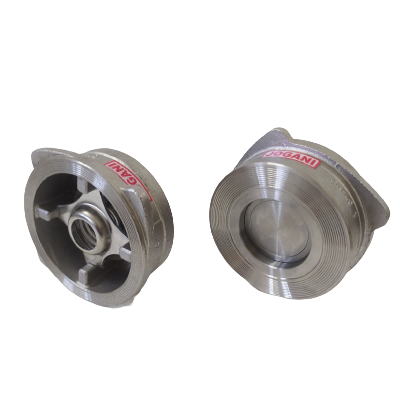

DISC CHECK VALVE

We, “JOGANI” are a leading manufacturer and Exporters of DISC CHECK VALVE. We have a wide range of DISC CHECK VALVE in CI, CS, SS and other metals on request. “UVI” DISC CHECK VALVE mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Power Plant and many more.

"JOGANI" DISC CHECK VALVE design is developed with following and using international Standard for having an International Competency with Global Manufacturers.

We "JOGANI" follow an international standards and designs to get 100% superior quality with workmanship & service to maintain trust of our Clients and repeat order.

TECHNICAL DETAIL
DESIGN TYPE	NON-SLAM FLANGELESS SANDWICH PATTERN METAL TO METAL SEAT SOFT SEAT
MFG. STANDARD	DIN EN 558 / API 594 / API 6D
TESTING STANDARD	API 598 / DIN 3230
FACE TO FACE STANDARD	DIN EN 558
PRESSURE & TEMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150# PN 10, PN 16, PN 25, PN 40
VALVE SIZE	1/2” To 6” (15 mm TO 150 mm)
INSTALLATION POSITIONS	HORIZONTAL / VERTICAL
END CONNECTIONS	WAFER TYPE (FLANGLESS)
MOUNTING BETWEEN	150# PN 10, PN 16, PN 25, PN 40 BS 10 TABLE D / E / F / H **Between any standard flanges
MATERIAL OF CONSTRUCTIONS	ASTM A 216 GR. WCB ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M **Also, Other Special Alloy available on request.

FACE TO FACE DIMENSIONS
INCH	MM	150#
½”	15	17.0
¾”	20	20.0
1”	25	23.0
1½”	40	32.0
2"	50	40.0
2½”	65	46.0
3"	80	50.0
4"	100	60.0
6"	150	105.0
**For More & Higher Size, Please Contact Us

TEST PRESSURE
CLASS	BODY HYDRO TEST		SEAT HYDRO TEST
	PSIG	KG/CM2	PSIG	KG/CM2
150#	425	30	300	21
PN 25	425	30	300	21
PN 40	425	30	300	21
Pressure Testing Time will be 15 Sec. Test with Water only.

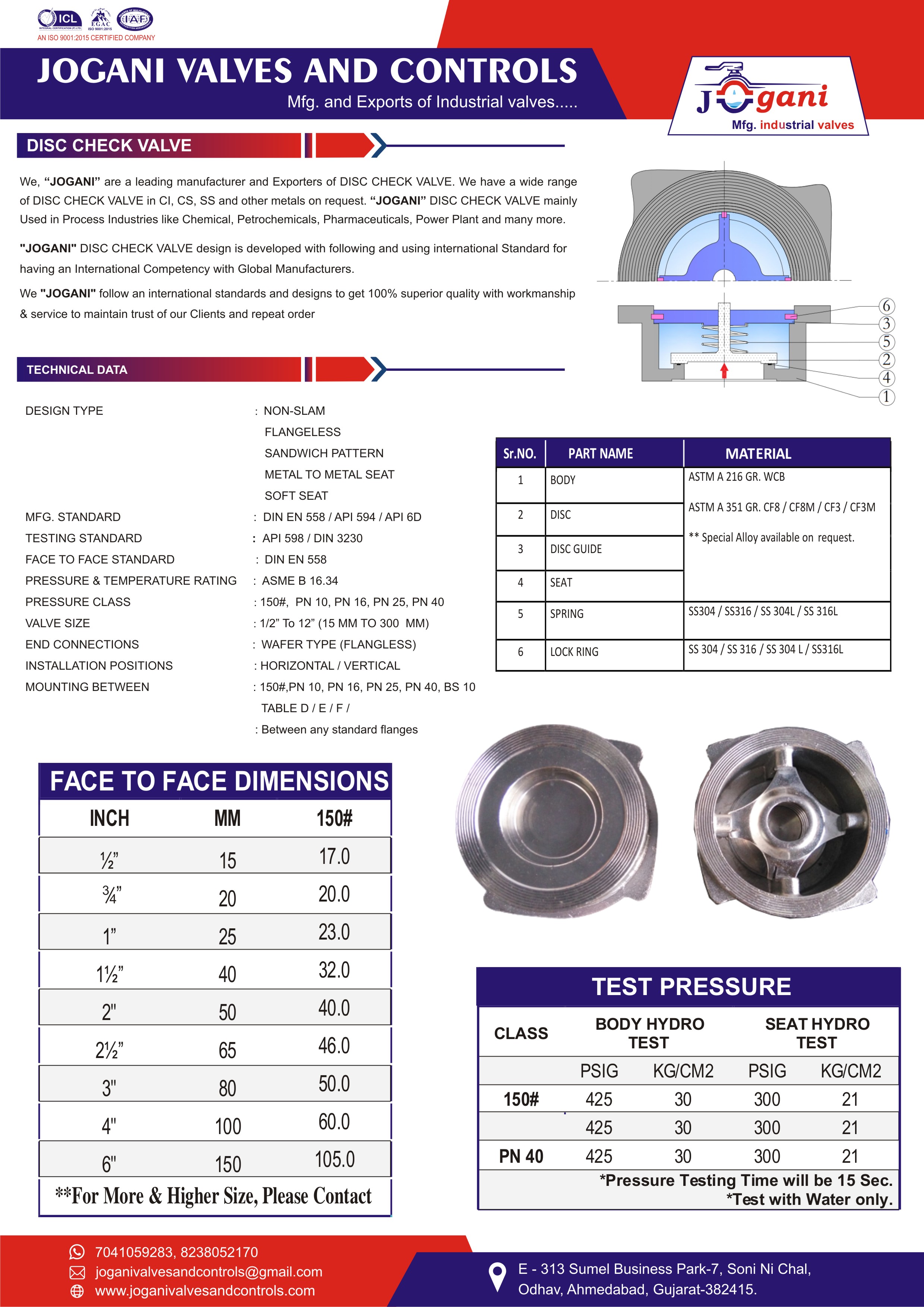

View Catalogue
