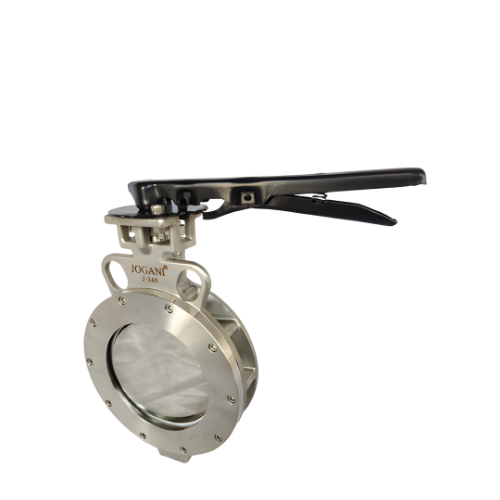

OFFSET SPHERICAL BUTTERFLY VALVE

OFFSET SPHERICAL BUTTERFLY VALVE | Jogani Valve & Controls

At Jogani Valves, we believe reliable flow control is the backbone of any efficient industrial operation. As a trusted Spherical Butterfly Valve Manufacturer in India, we have engineered our OFFSET SPHERICAL BUTTERFLY VALVE to deliver superior performance exactly where it counts.

Standard valves often wear out quickly due to high friction, but our design addresses this head-on. By utilizing a unique spherical disc geometry, we minimize the physical contact between the disc and the seat during opening and closing.

Key Features of Our OFFSET SPHERICAL BUTTERFLY VALVE:

Reduced Friction: The smart offset design lowers torque requirements.
Superior Sealing: As a premier spherical disc butterfly valve manufacturer.
Built to Last: Rugged construction capable of handling high-pressure.
Triple Offset Design: Ensures zero leakage and smooth sealing under high pressure.
Suitable for pneumatic and hydraulic systems
Low Operating Torque: Requires less effort to operate, saving energy and enhancing efficiency.

This “offset” mechanism significantly reduces wear and tear, ensuring a longer service life and much lower maintenance costs for your plant.

An Offset Spherical Butterfly Valve is designed to provide tight shut-off, smooth operation, and long service life in demanding industrial applications. The offset spherical seat design reduces friction between the disc and seat, resulting in minimal wear and reliable sealing even under high pressure and temperature conditions.

This valve offers low operating torque, making it energy-efficient and easy to operate. Manufactured from durable, corrosion-resistant materials, it performs consistently in harsh environments. Offset spherical butterfly valves are widely used in oil & gas, chemical, power, and water industries where precise flow control and leak-free performance are essential.

TECHNICAL DETAIL
DESIGN TYPE	OFFSET DESIGN DOUBLE OFFSET DESIGN TRIPLE OFFSET DESIGN
MFG. STANDARD	BS 5155, API 609 & AWWA 504
TESTING STANDARD	API 598/ BS 6755 Part-I
FACE TO FACE STANDARD	BS 5155, API 609 & AWWA 504 / ANSI B 16.10
PRESSURE & TEMPERATURE RATING	ASME B 16.34
PRESSURE CLASS	150#, 300# PN10, PN 16
VALVE SIZE	1½” To 40” (40 mm TO 1000 mm)
END CONNECTIONS	WAFER TYPE
FLANGE DRILLING	150#, 300# PN10, PN 16 BS 10 TABLE D / E / F / H
VALVE SEAT LEAKAGE	CLASS VI (Zero Leakage)
MATERIAL OF CONSTRUCTIONS	CI TO IS 210 GR. FG 200 ASTM A 216 GR. WCB ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M **Also Other Special Alloy available on request.

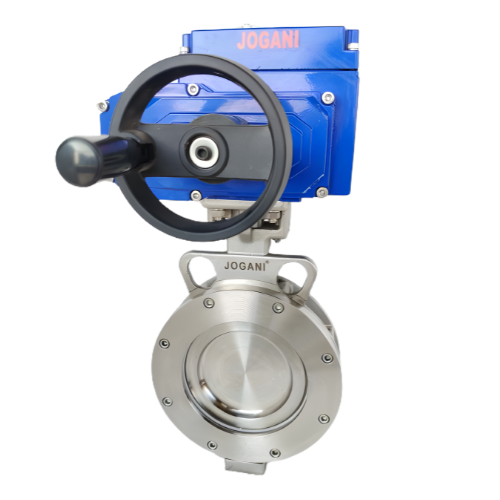

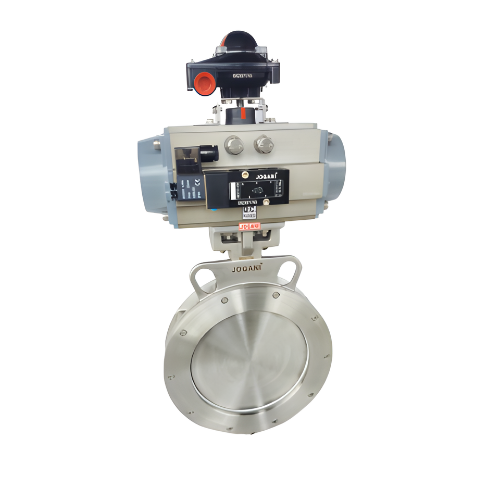

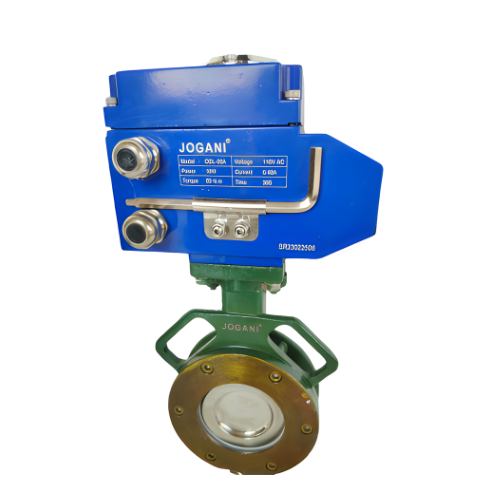

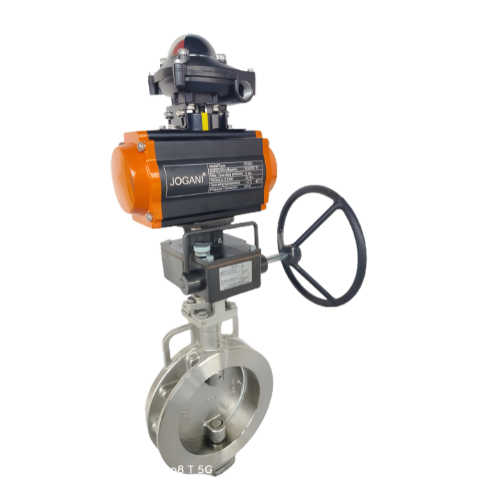

OPERATIONS	HAND WHEEL / GEAR PNEUMATIC / ELECTRICAL ACTUATOR **Also Other Special Operation available on request.
