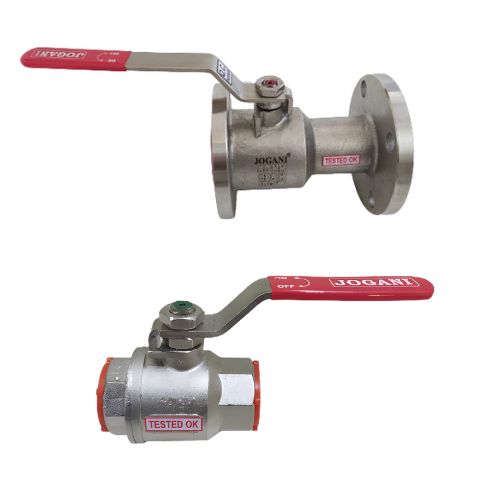

The 1 PC Design Ball Valve by JOGANI is engineered for full-flow operation; therefore, it ensures minimal pressure drop in demanding industrial applications. As a result, it becomes a reliable choice for process industries. Moreover, its single-piece body construction provides excellent strength and leak-proof performance; consequently, it offers long-term durability. In addition, this compact design is ideal for applications with limited space; therefore, it delivers robust performance where a small yet strong valve is required.
JOGANI ball valves are manufactured using various Materials of Construction (MOC); therefore, they are suitable for different process requirements and operating conditions. Moreover, we offer these valves in both full bore and reduced bore designs; as a result, customers can select options based on flow requirements. In addition, our valves support pressure ratings of Class 150#, 300#, and 600#, ensuring reliable performance in different applications. Furthermore, we provide multiple end connection options such as Flanged End, Butt Weld End, Screwed (BSP/NPT), and Socket Weld End; consequently, installation into existing pipelines becomes easy and flexible.
The 1 PC Ball Valve is widely used in chemical, petrochemical, pharmaceutical, and food & beverage industries; therefore, it plays a critical role in ensuring smooth flow control and operational safety. At JOGANI, we manufacture every valve in accordance with international standards; as a result, consistent quality and reliable performance are achieved. Moreover, we apply strict quality checks during production; consequently, each valve delivers excellent workmanship and long service life.
At JOGANI, we manufacture every valve in accordance with international standards; therefore, strict quality checks are implemented to ensure reliable performance, excellent workmanship, and consistent service life. As a result, our strong focus on quality helps us build long-term trust with clients. Moreover, this approach encourages repeat business; consequently, we maintain lasting relationships with customers across industries.
TECHNICAL DETAIL | |
DESIGN TYPE | FULL BORE DESIGN |
MFG. STANDARD | BS 5351 / API 6D |
TESTING STANDARD | API 598 / BS 6755 Part-I / API 607 |
FACE TO FACE STANDARD | ASME B 16.10 |
FLANGE STANDARD | ASME B 16.5 |
BUTT WELD END STANDARD | ASME B 16.25 |
PRESSURE & TEMPERATURE RATING | ASME B 16.34 |
PRESSURE CLASS | 150#, 300# |
VALVE SIZE | 1/2” To 6” |
END CONNECTIONS | FLANGED / BUTT WELD / RT JOINT |
FLANGE DRILLING | 150#, 300#, |
MATERIAL OF CONSTRUCTIONS | CI TO IS 210 GR. FG 200 |

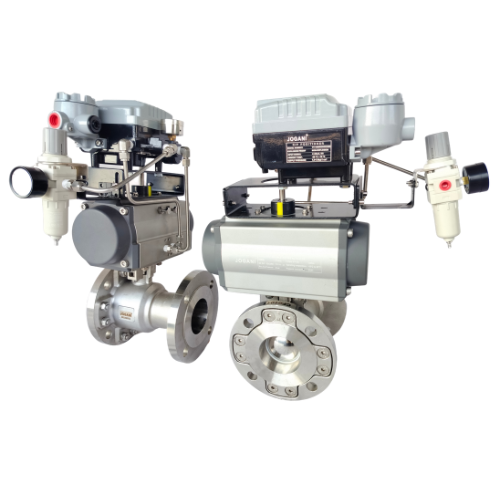

OPERATIONS | HANDLE / GEAR / PNEUMATIC / ELECTRICAL ACTUATOR |
